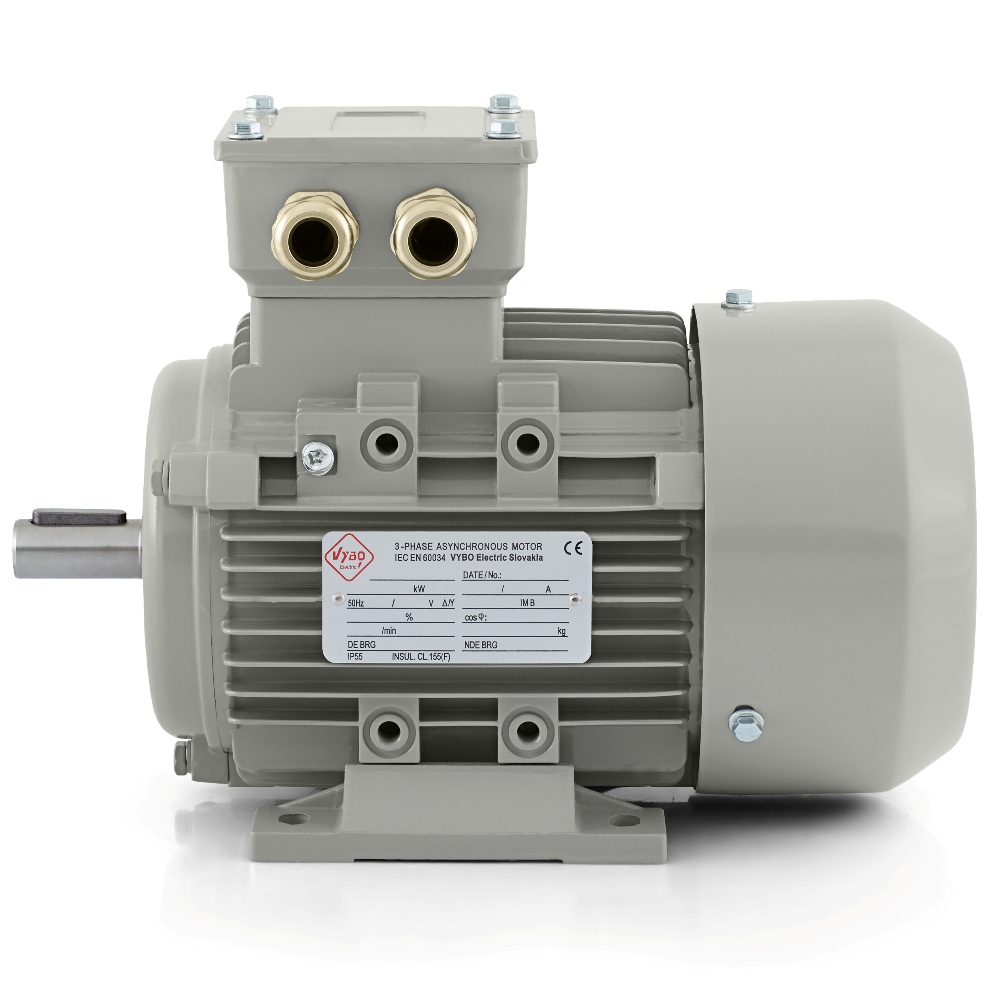

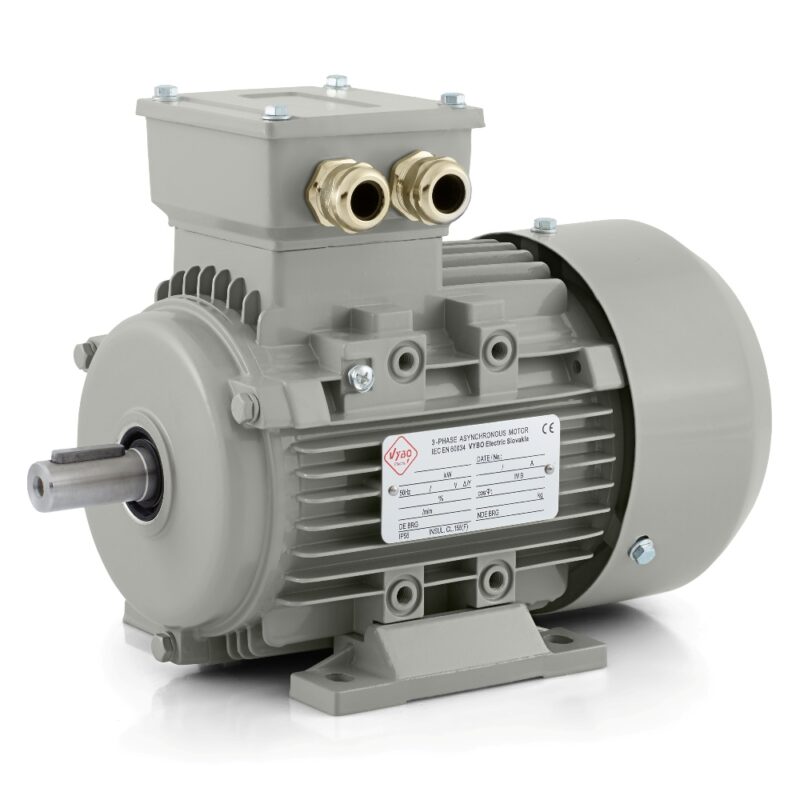

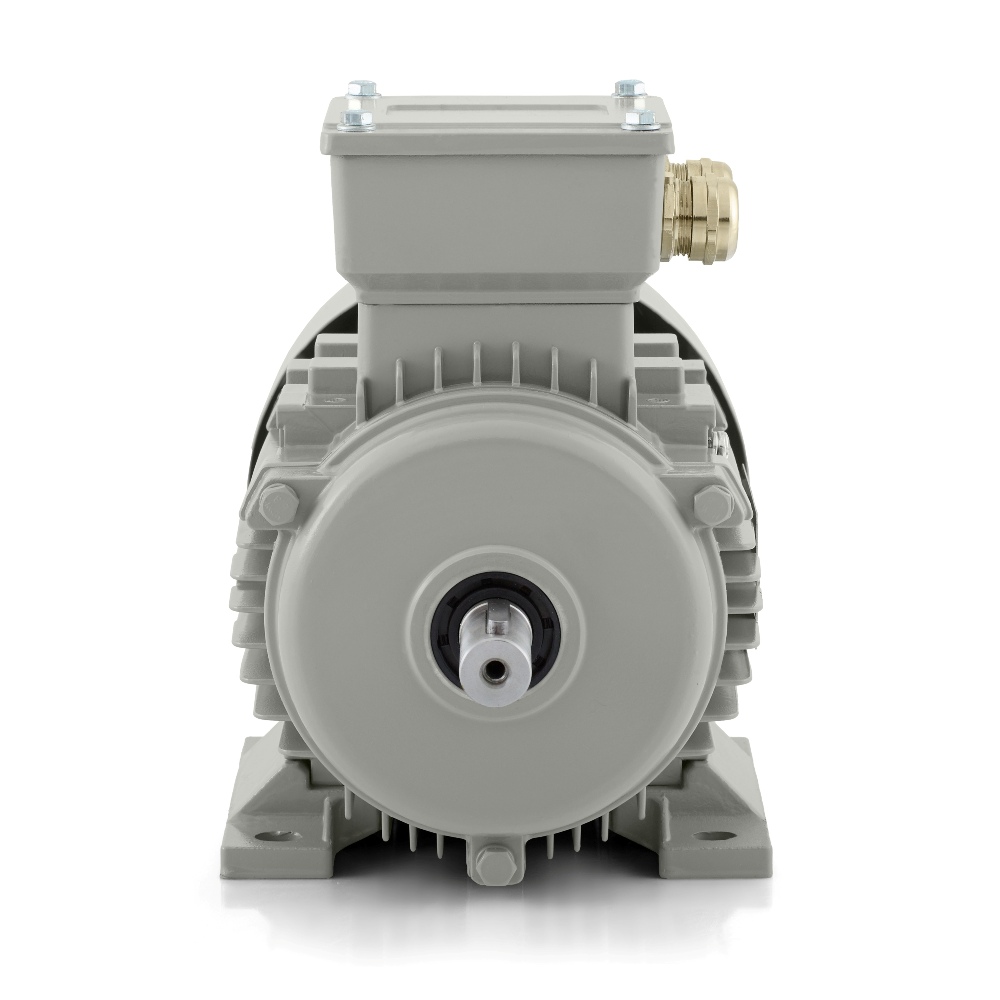

Electric motor 0,12 kW, 2700 rpm, 400 V, 1AL-562-2

Electric motor 1AL-562-2 0.12 kW for compact equipment where space and reliability matter

In smaller machines, it is often not only the power output itself that matters. Also important is how much space the drive takes up, how it behaves in everyday operation, and whether it fits without problems into technology that runs regularly and without long downtimes. This is exactly the kind of environment for which the electric motor 1AL-562-2 by VYBO Electric is intended. It is a three-phase asynchronous electric motor with an output of 0.12 kW, rated speed of 2700 rpm and 2-pole design at a frequency of 50 Hz. The rated voltage of 230/400 V and Delta/Y connection make it easy to integrate into standard three-phase systems.

The 56 frame size makes this model a practical drive for assemblies where installation space is limited, while the motor is still expected to deliver stable, fast and even operation. This combination is especially important in compact equipment, auxiliary mechanisms and smaller production modules. The motor is part of the 1AL OPTIMAL series, which is known for its excellent value for money, proven quality and wide applicability across various industries.

When the drive has to work briskly and without unnecessary compromises

With the 1AL-562-2 model, the key point is that it combines a compact design with high speed. The rated speed of 2700 rpm gives the motor a dynamic character that is well suited to smaller mechanical movements, auxiliary transmissions and equipment where a quick drive response is required. The rated current is 0.61 A at 230 V and 0.35 A at 400 V, which helps both in power supply design and in correct electrical sizing.

The motor operates with a power factor of 0.78 and an efficiency of 64 %. The starting values also play an important role. A starting torque ratio of 2.2, a pull-out torque ratio of 2.1 and a starting current ratio of 5.2 create a solid basis for equipment that must start reliably and operate stably in repeated cycles. In small drives, predictable starting behaviour is particularly important because it affects the smooth running of the entire technology.

Suitable for production, service and technical back-up systems

This electric motor naturally finds use wherever lower power, compact dimensions and long-term reliability are needed. It fits well in small conveyors, feeders, packaging modules, labelling equipment, sorting mechanisms and dosing units. It also has its place in smaller fans, extraction units, auxiliary pumps, light mixers, filling modules, laboratory equipment, service lines, assembly workstations and auxiliary production tables.

The advantage in such applications is not only the power output itself, but especially the practical usability. The motor takes up little space, yet offers fast operation and good readiness for daily use. This is important in technologies where work is often carried out in confined spaces, in frame constructions or in equipment where every design element must be used efficiently.

Durability for standard and more demanding operating conditions

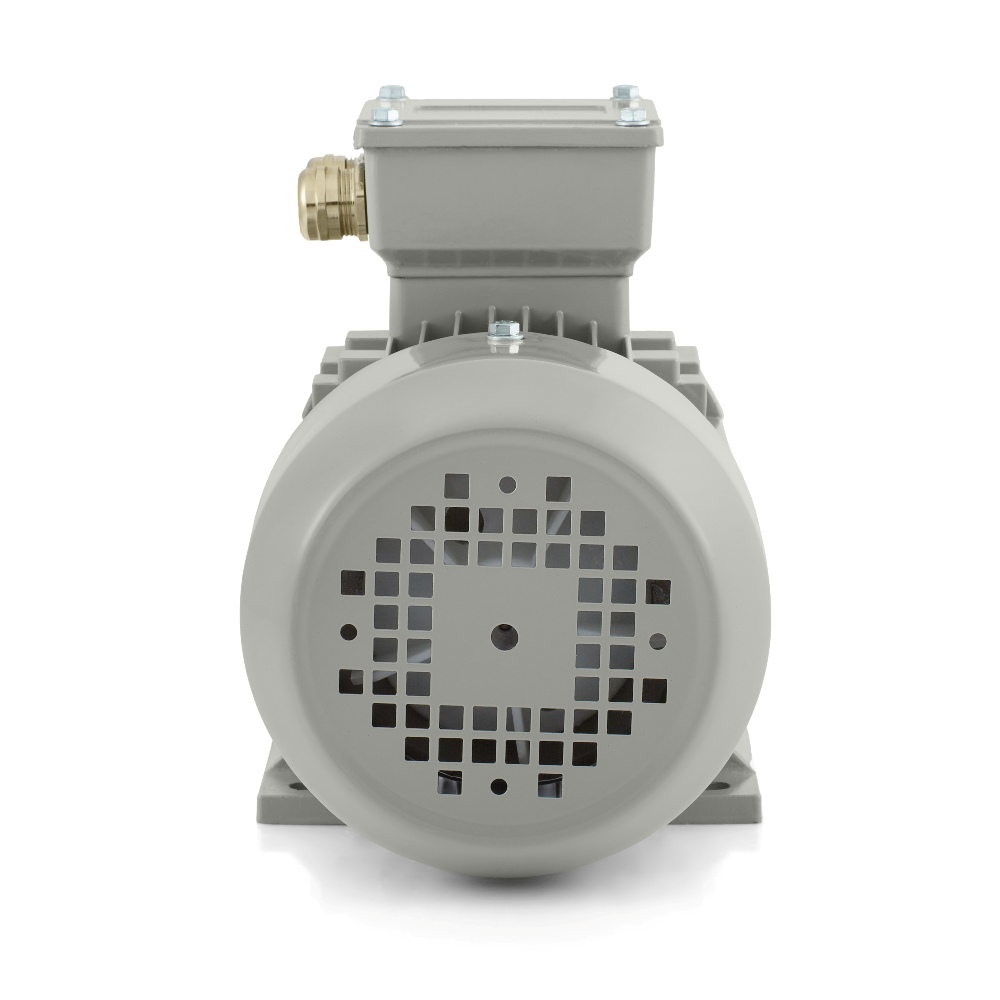

The 1AL-562-2 model is designed for standard as well as more demanding operations in an aluminium frame. IP55 protection provides resistance against dust and splashing water, which is very important in industrial environments. The motor can therefore work reliably in workshops, production halls, technological rooms and in operations where emphasis is placed on resistance to normal external influences. The IC411 cooling method supports an even thermal regime and helps maintain stable operation under working load.

The F insulation class and B temperature rise correspond to professional industrial construction. The service factor of 1.0 is based on rated operating conditions, and the motor is suitable for S1, S2, S3 and S4-S9 duty types. The parabolic or linear load characteristic extends its usability in technologies with different load profiles during the operating cycle.

Quiet running that helps the entire technology

In smaller drives, running quality is often just as important as the power output itself. This model operates with a vibration velocity of 2.8 mm/s in class A and a noise level of 57 dB(A), which supports quiet operation. In practice, this is especially helpful in more compact machines, auxiliary modules or technologies located closer to the operator. The motor can rotate in either direction, which gives greater flexibility when designing the mechanical solution.

The balancing is carried out with a half key. On both the DE and NDE sides, bearings 6201-2Z are fitted and lubrication is provided by No. 2 lithium-based grease. These elements support reliable operation and create a good basis for regular use in various types of equipment, from simple auxiliary mechanisms to parts of more modern production lines.

Flexibility of the 1AL OPTIMAL series in installation and use

From an installation point of view, the motor is fitted with cable entries 2-M20X1.5. The packaging dimensions of 220 × 130 × 175 mm and a packaged weight of 4 kg make handling, storage and logistics easier during servicing or drive replacement. The rotor inertia of 0.00023 kg·m² adds to the picture of the motor behaviour during start-up and changes in operating state.

The 1AL OPTIMAL series is available in mounting versions IM B3, IM B35, IM B5, IM B14 and IM B34, which expands the installation options in various machine types. Its advantages also include high compatibility, the possibility of replacing the front cover, compatible feet, a reinforced terminal box, refined IP55 terminal box protection, a steel fan cover, a carefully designed frame to improve cooling efficiency, and reinforced bearings. The motor is suitable for starting by the DOL method. Depending on the requirements of the specific technology, it is also suitable for control by a frequency inverter or a soft starter.

Compact motor with a professional foundation

The electric motor 1AL-562-2 brings fast running, a compact frame, IP55 protection and reliable workmanship from the VYBO Electric brand to smaller industrial equipment. For technologies where space saving, stable operation and durability in everyday use are important, it represents a practical and professional choice with high usability across different industrial sectors.
