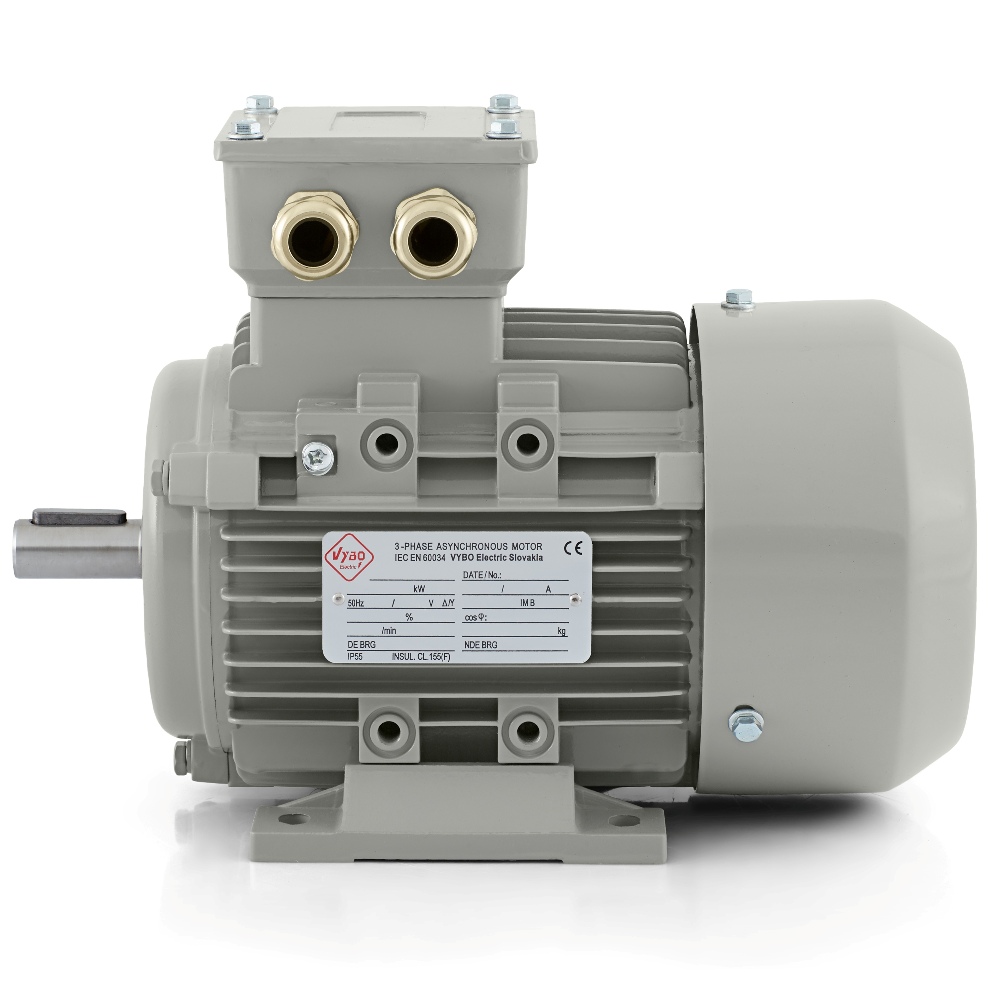

Three-phase electric motor: 1AL-63M1-2, 0,18 kW

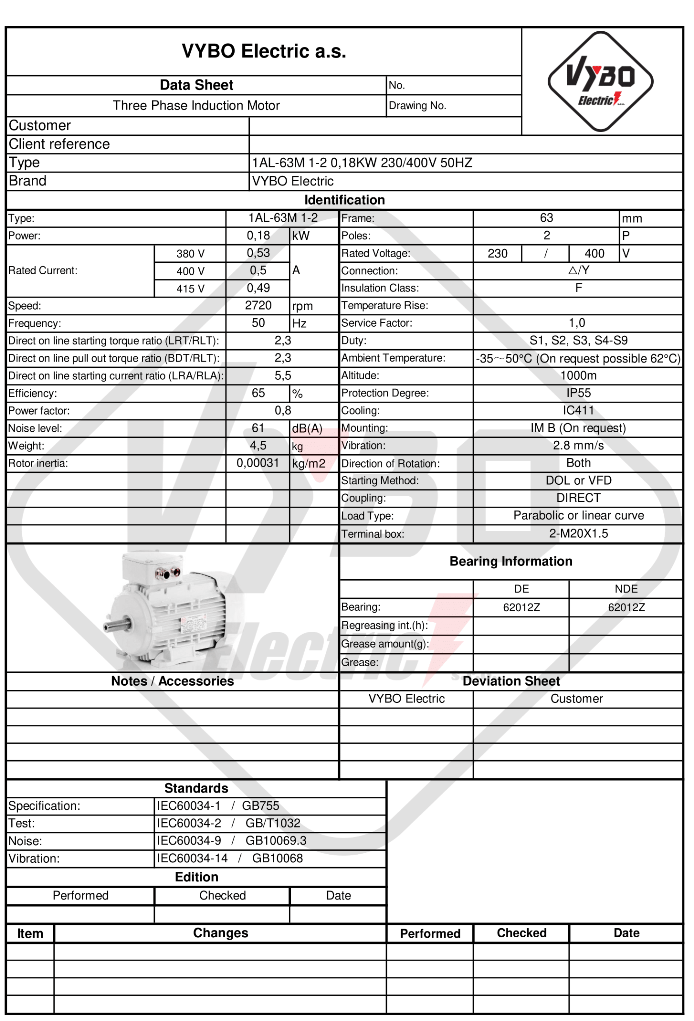

| Basic technical data | |
| Motor type | 1AL-63M1-2 |
| Rated power (kW) | 0,18 |
| Frame size (mm) | 63 |
| Number of poles | 2 |
| Rated speed (rpm) | 2720 |
| Frequency (Hz) | 50 |
| Electrical parameters | |
| Rated voltage (V) | 230/400 |
| Connection | △/Y |
| Rated current 230 V (A) | 0,87 |
| Rated current 400 V (A) | 0,5 |
| Efficiency at 100% load (%) | 65 |
| Power factor at 100% load | 0,8 |
| Starting and torque characteristics | |
| Locked-rotor torque ratio (LRT/RLT) | 2,3 |
| Breakdown torque ratio (BDT/RLT) | 2,3 |
| Locked-rotor current ratio (LRA/RLA) | 5,5 |
| Rotor moment of inertia (kg·m²) | 0,00031 |
| Applicable standards | |
| Specification | IEC60034-1 |
| Testing | IEC60034-2 |
| Noise | IEC60034-9 |
| Vibration | IEC60034-14 |
| Construction and operating data | |
| Mounting arrangement | B3, B5, B14, B14B, B34, B35 |
| Duty type | S1 (S2, S3, S4 – S9 optional) |
| Load type | Parabolic or linear curve |
| Degree of protection | IP55 |
| Insulation class | F |
| Temperature rise class | B |
| Cooling method | IC411 |
| Starting method | DOL, VFD, soft starter |
| Direction of rotation | Both |
| Vibration (mm/s) | 2.8 |
| Cable glands | 2-M20X1.5 |
| Operating conditions | |
| Ambient temperature range | +65°C |
| Maximum installation altitude | up to 1000m |
| Packaging and dimensions | |
| Packaging dimensions (mm) | 235*140*185 |
| Package weight (kg) | 4,5 |
| Bearings and lubrication | |
| DE/NDE bearings | 6201-2Z/6201-2Z |
| Lubricant | Lithium-based grease No. 2 (temperature class) |
Electric motor 1AL-63M1-2 0.18 kW for compact technologies with a fast operating rhythm
Not every industrial drive needs high power. In many devices, what matters more is that the motor operates quickly, reliably, and without unnecessary space requirements. Electric motor 1AL-63M1-2 from VYBO Electric precisely meets this requirement. It is a three-phase asynchronous electric motor with an output of 0.18 kW, a 2-pole design and a rated speed of 2720 rpm at a frequency of 50 Hz. Thanks to the voltage of 230/400 V and the Delta/Y connection, it can be easily integrated into standard three-phase systems and provides a reliable basis for smaller industrial mechanisms.
The 63 frame size offers a practical compromise between compact installation and operational reliability. This model is suitable where the drive must be space-efficient, yet ready for regular operation in the production, handling or technical processing cycle. That is why it is of interest to equipment designers, service solutions and modern production modules where efficient use of space is important.
The strong point of this model is its operating pace
The rated speed of 2720 rpm gives the motor a dynamic character. In practice, this means a suitable basis for mechanisms that need brisk movement, accurate power transmission and stable behaviour during repeated start-up. The 0.18 kW output is ideal for lighter industrial tasks where a robust drive with high torque is not required, but reliable and balanced running with emphasis on compactness and reliable operation is needed.
The motor operates with a power factor of 0.80 and an efficiency of 65 %. The rated current is 0.87 A at 230 V and 0.50 A at 400 V, which helps with power supply design and correct sizing of the electrical part of the equipment. Additional parameters are also important for the key starting moments. A starting torque ratio of 2.3, a pull-out torque ratio of 2.3 and a starting current ratio of 5.5 support a stable start and predictable behaviour under load. In smaller technologies, this is a practical advantage, because machine operation often depends precisely on smooth and reliable run-up.
Operation suited to standard production and cyclical running
1AL-63M1-2 is suitable for operating modes S1, S2, S3 and S4-S9. This means good usability not only in continuous operation, but also in technologies where the motor is regularly started, stopped or operates in cycles with intermittent load. The service factor of 1.0 corresponds to rated working conditions and the parabolic or linear load characteristic broadens its application in various types of mechanical tasks.
In practice, this is especially important for equipment that does not have the same load profile throughout the entire shift. Drives for feeders, smaller conveyors, dosing units or handling modules often work in a variable rhythm. The motor therefore has to manage regular operation without losing stability and without unnecessarily complicated integration into the technology.
Construction prepared for the industrial environment
The 1AL OPTIMAL series is one of VYBO Electric’s best-selling ranges, with more than 30,000 units installed in industry. The motor is part of the 1AL OPTIMAL range, which is designed for standard and demanding operations in an aluminium frame. This series is known as the best-selling model of the VYBO Electric brand and has more than 30,000 installed units in industry. The reason is a combination of proven quality, high compatibility, fast and simple commissioning and very good value for money.

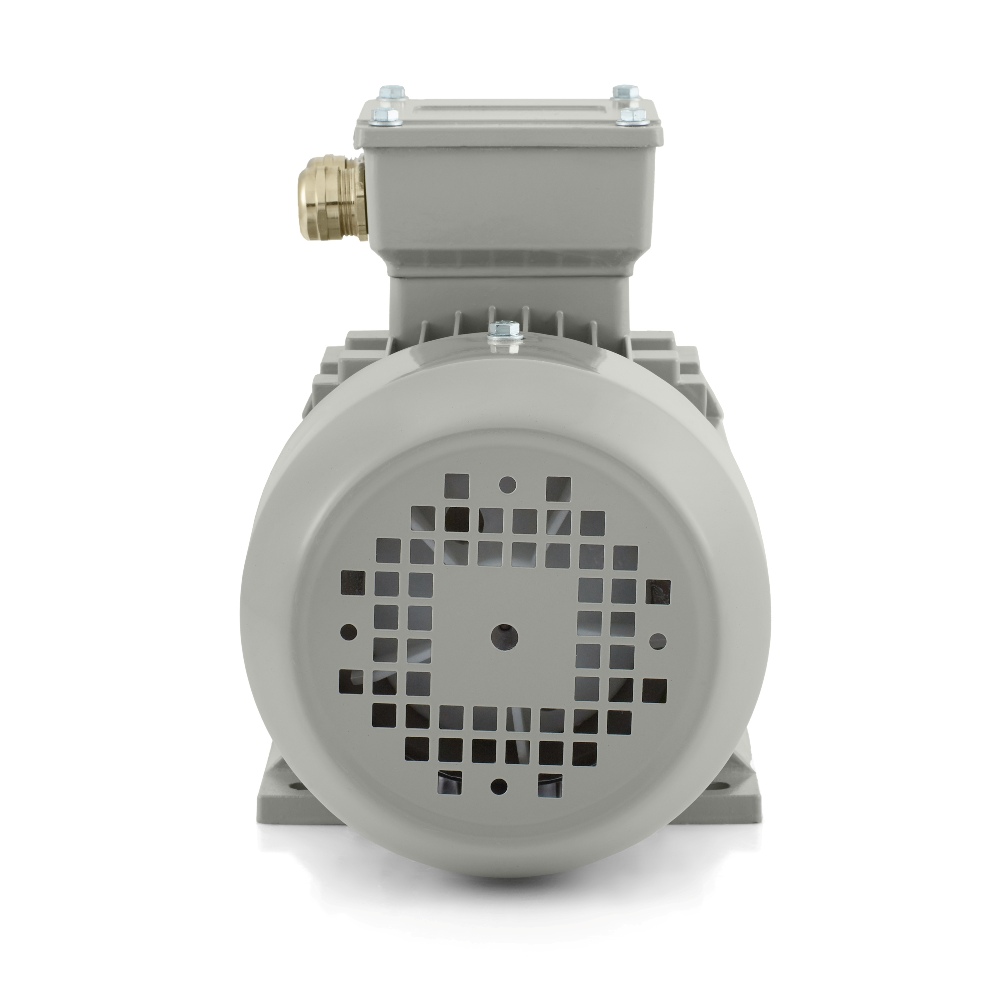

In the specific 1AL-63M1-2 model, this is also reflected in its design prepared for everyday operation. The IP55 enclosure provides protection against dust and splashing water. The IC411 cooling method supports a stable thermal regime and helps the motor maintain balanced operation during work. The F insulation class and B temperature rise correspond to industrial use where reliability is required even under longer working loads.
On the DE and NDE sides, 6201-2Z bearings are used and lubrication is provided by No. 2 lithium-based grease. Balancing is carried out with a half key. Vibration of 2.8 mm/s in class A and noise level of 61 dB(A) support quiet operation, which is especially advantageous in more compact equipment and technologies located closer to the operator. The motor can rotate in either direction, so the motor is also well suited to universal or reversing mechanisms.
Where this electric motor brings the greatest benefit
The characteristics of the 1AL-63M1-2 model make it suitable for equipment where smaller output, brisk running and the requirement for reliable everyday operation are combined. It is well suited for small conveyors, material feeders, packaging modules, labelling units, sorting devices, dosing stations, fan assemblies and extraction modules. It also fits naturally into auxiliary pumps, light mixers, filling workplaces, laboratory equipment, service lines and smaller assembly or production tables.
In such applications, it is crucial that the drive does not complicate the machine design, does not require excessive space and can work reliably even during repeated working cycles. This is precisely where the advantage of the compact frame and fast mechanical response offered by this model becomes apparent.
Mounting flexibility of the 1AL OPTIMAL series
The motor is equipped with 2-M20X1.5 cable entries. The packaging dimensions of 235 × 140 × 185 mm and the packaged weight of 4.5 kg make handling easier during transport, storage and service replacements. The rotor moment of inertia of 0.00031 kg·m² complements the view of the motor’s behaviour during start-up and when changing operating state.
The 1AL OPTIMAL range is available in mounting versions IM B3, IM B35, IM B5, IM B14 and IM B34, which provides wide options for installation in various types of machines and technologies. The advantages of the series also include compatible feet, the option of replacing the front cover, a reinforced terminal box, improved protection of the IP55 terminal box cover, a steel fan cover, a carefully designed frame to increase cooling efficiency and reinforced bearings. The motor is suitable for starting by DOL method and, according to the needs of the technology, also for control by frequency inverter or soft starter.
Electric motor 1AL-63M1-2 therefore represents a reliable choice for compact industrial drives that need fast running, durable design and good readiness for everyday work across a wide range of equipment.
