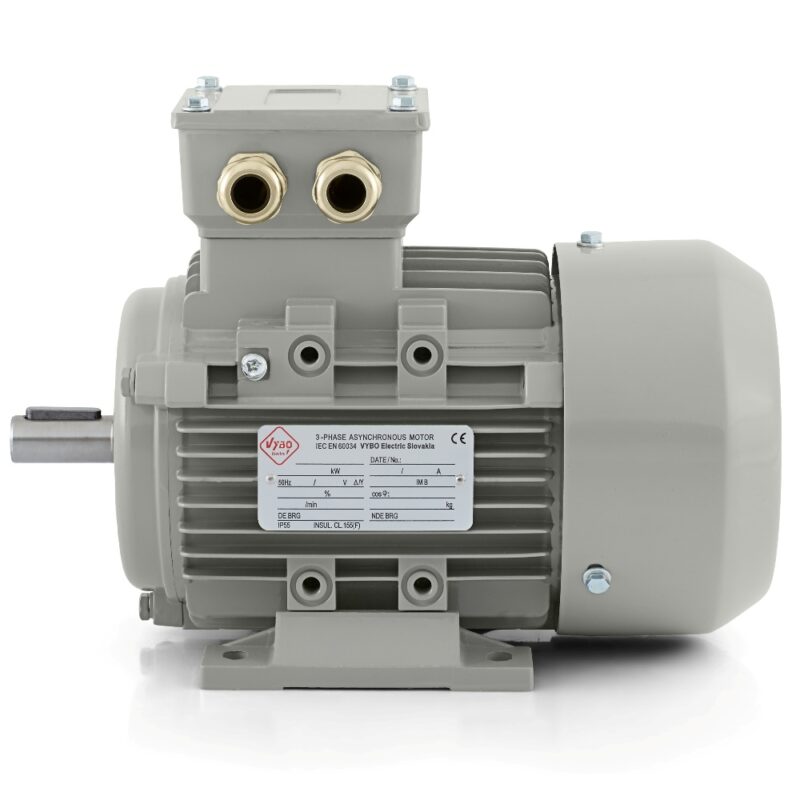

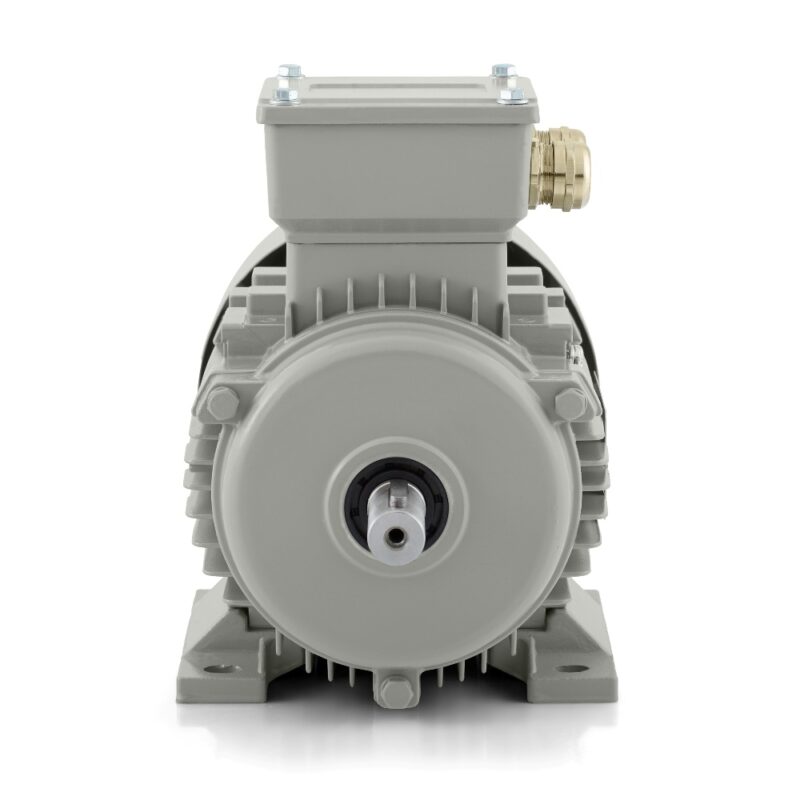

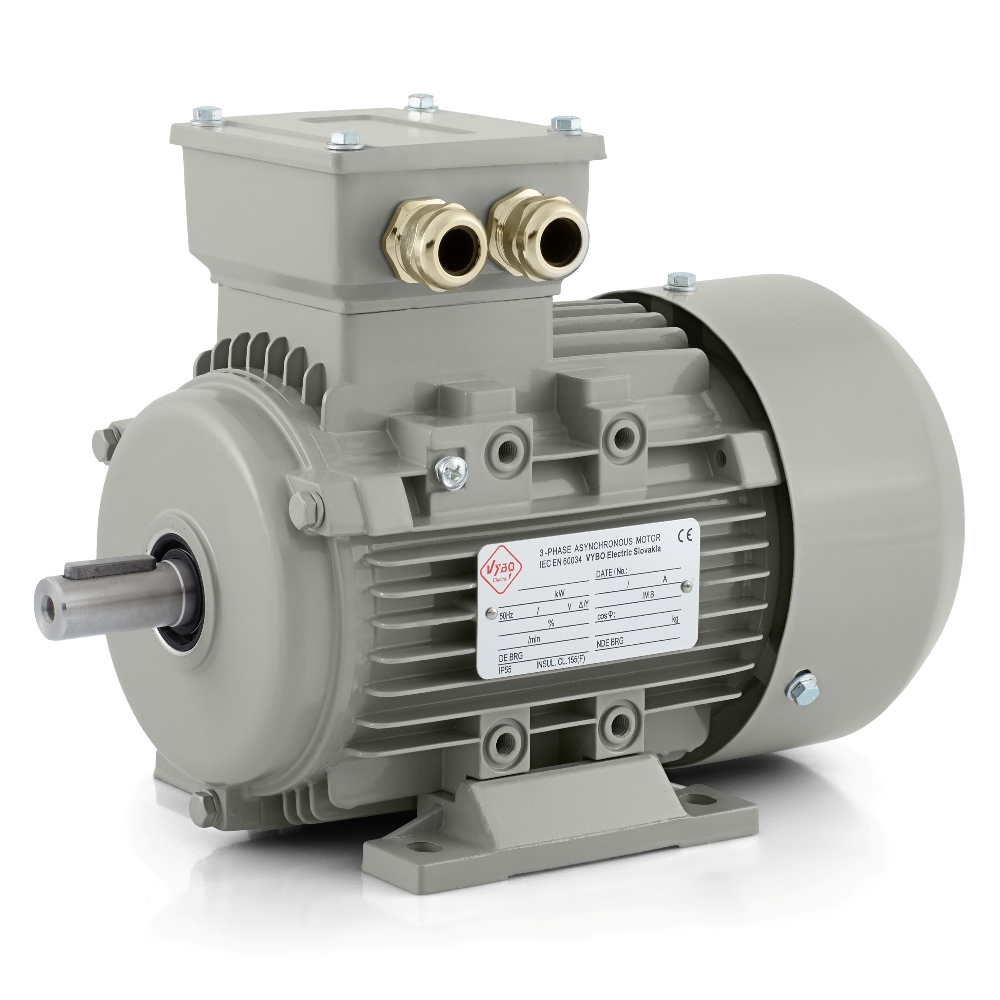

Electric motor 0,18 kW, 1310 rpm, 400 V, 1AL-63M2-4

Stable drive for technologies with a regular duty cycle

Electric motor 1AL-63M2-4 from the 1AL OPTIMAL series is a three-phase asynchronous electric motor designed for operations where the drive must work reliably, quietly and without unnecessary demands on installation space. The output of 0.18 kW, rated voltage of 230/400 V and connection Delta/Y give this model a firm place in smaller and medium-loaded industrial mechanisms. At a frequency of 50 Hz, it reaches rated speed of 1310 rpm and the 4-pole design supports smooth operation in applications where smooth power transmission and long-term operational reliability are important.

The frame size 63 is suitable for constructions in which compact dimensions and easy installation into an existing machine are important. The Electric motor 1AL-63M2-4 is naturally used in dosing technologies, conveyor modules, packaging machines, labelling lines, sorting mechanisms, smaller mixing units, fan assemblies, pumping units, feed systems, closing systems, laboratory equipment and various automated workplaces. In such solutions, it is often crucial that the motor operates evenly and fits well into the everyday rhythm of production.

Parameters that give the technology confidence

The motor reaches a rated current of 1.03 A at 230 V and 0.59 A at 400 V. Efficiency is 60 % and power factor 0.73. The starting torque ratio of 2.2, breakdown torque ratio of 2.1 and starting current ratio of 4 are data that have direct significance when selecting the start-up method and when designing the mechanical connection to the driven equipment. Where a reliable start-up without unstable drive behaviour is required, this is an important basis.

Noise level at 52 dB(A) supports refined technology operation, which is especially valuable for machines located closer to the operator or in production areas with several working mechanisms. The rotor moment of inertia of 0.0006 kg·m² is suitable for equipment with regular starts, stops or a short duty cycle. During repeated movements, dosing or material transfer, this value helps maintain good drive response and clear behaviour of the entire assembly.

Durability is also important in real operation

In industrial environments, performance is not the only deciding factor. The ability of the motor to work reliably in normal operating conditions, where dust, heat, vibration and daily load are present, is also important. Model 1AL-63M2-4 has an IP55 ingress protection rating, which helps protect the internal parts of the motor from dust and splashing water. This is practical in packaging operations, conveyor systems, material handling machines and technical units where the motor operates as part of both enclosed and more open constructions.

Thermal stability is provided by IC411 cooling. The motor uses insulation class F and temperature rise B, which is a suitable combination for long-term industrial operation. It can operate at ambient temperatures of up to +65 °C and is designed for altitudes up to 1000 m. Vibrations reach 2.8 mm/s in class A, so the motor supports quiet mechanical operation and lower transmission of undesirable vibrations into the machine frame. For machines with finer settings or regular recurring operation, this is a very useful element of operational stability.

Control, bearings and mounting flexibility

The electric motor is suitable for DOL starting, for control by frequency converter and also for soft starter. This combination expands the possibilities for direct connection and more precise control of start-up according to the needs of the specific machine. Rotation direction is possible in both directions, which makes it easier to use in reversing mechanisms, bidirectional feeds and technologies where movement changes according to the phase of the working process.

On the DE and NDE sides, 6201-2Z bearings are used. Lubrication is provided by No. 2 lithium-based grease in the appropriate temperature class. The balancing with a half key supports reliable mounting of power transmission elements and even operation during mechanical connection with other parts of the equipment. The motor is supplied with 2-M20X1.5 cable glands and a packaged weight of 4.7 kg with packaging dimensions of 235 × 140 × 185 mm makes handling easier during assembly, storage and servicing.

1AL OPTIMAL is among the best-selling solutions from VYBO Electric and in industry represents a proven platform with very good value for money. The series is known for quick commissioning, high compatibility and the option of various modifications as required. During installation, versions IM B3, IM B35, IM B5, IM B14, IM B34 can be used. Model 1AL-63M2-4 is therefore a suitable choice for operations that need a compact three-phase electric motor with IP55 protection, smooth operation and technical parameters ready for reliable everyday work.
