Three-phase electric motor: 3LC-315L2-2, 200 kW

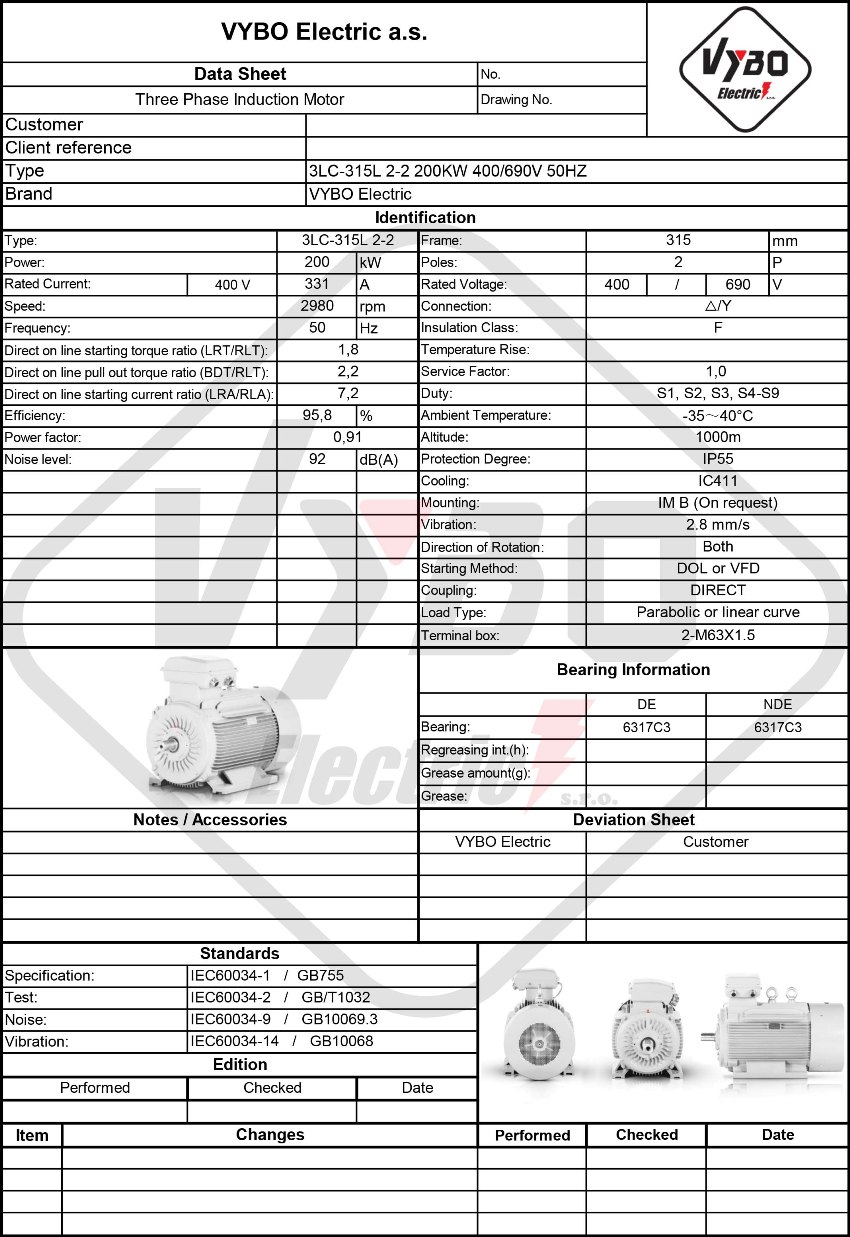

| Basic technical data | |
| Motor type | 3LC-315L2-2 |
| Rated power (kW) | 200 |
| Frame size (mm) | 315 |
| Number of poles | 2 |
| Rated speed (rpm) | 2980 |
| Frequency (Hz) | 50 |
| Electrical parameters | |
| Rated voltage (V) | 400/690 |
| Connection | △/Y |
| Rated current 400 V (A) | 331 |
| Rated current 690 V (A) | 191,88 |
| Efficiency at 100% load (%) | 95,8 |
| Efficiency class | IE3 |
| Power factor at 100% load | 0,91 |
| Starting and torque characteristics | |
| Locked-rotor torque ratio (LRT/RLT) | 1,8 |
| Breakdown torque ratio (BDT/RLT) | 2,2 |
| Locked-rotor current ratio (LRA/RLA) | 7,2 |
| Rotor moment of inertia (kg·m²) | 2,654 |
| Applicable standards | |
| Specification | IEC60034-1 |
| Testing | IEC60034-2 |
| Noise | IEC60034-9 |
| Vibration | IEC60034-14 |
| Construction and operating data | |
| Mounting arrangement | IM B3, B5, B35, V1 |
| Duty type | S1 (S2, S3, S4 – S9 optional) |
| Load type | Parabolic or linear curve |
| Degree of protection | IP55 |
| Insulation class | F |
| Temperature rise class | B |
| Cooling method | IC411 |
| Starting method | DOL, VFD, soft starter |
| Direction of rotation | Both |
| Vibration (mm/s) | 2.8 |
| Cable glands | 2-M63X1.5 |
| Operating conditions | |
| Ambient temperature range | -20 to +40°C (-30, +50, +60 optionally) |
| Maximum installation altitude | up to 1000m |
| Packaging and dimensions | |
| Packaging dimensions (mm) | 1412*727*1026 |
| Package weight (kg) | 1087 |
| Bearings and lubrication | |
| DE/NDE bearings | 6317-C3/6317-C3 |
| Lubricant | Lithium-based grease No. 2 (temperature class) |
| Accessories | |
| 3 x PTC thermistor | |
2-pole electric motor for savings in continuous operation
The 3LC PRO 3LC-315L2-2 is designed for operations that monitor both energy savings and long-term drive value. This 2-pole electric motor with an output of 200 kW and a speed of 2980 rpm delivers stable performance to production lines, pumps and compressor assemblies where smooth starting and balanced operation are expected. For medium-sized companies, large factories, engineers and designers, predictable operation and a low risk of unplanned intervention are particularly important.
IE3 efficiency class – Super High Efficiency supports lower consumption under normal load and reduces pressure on operating costs during long shifts. In practice, this is valuable for any drive technology running in multi-shift production that needs to maintain performance without unnecessary energy losses. Rated current of 331 A at △ 400V and 191.88 A at Y 690V allows more flexible integration into existing power systems. A power factor of 0.91 supports economical use of the network, and an efficiency of 95.8% is beneficial where monthly operating costs are closely monitored.
Cast-iron frame for demanding production conditions

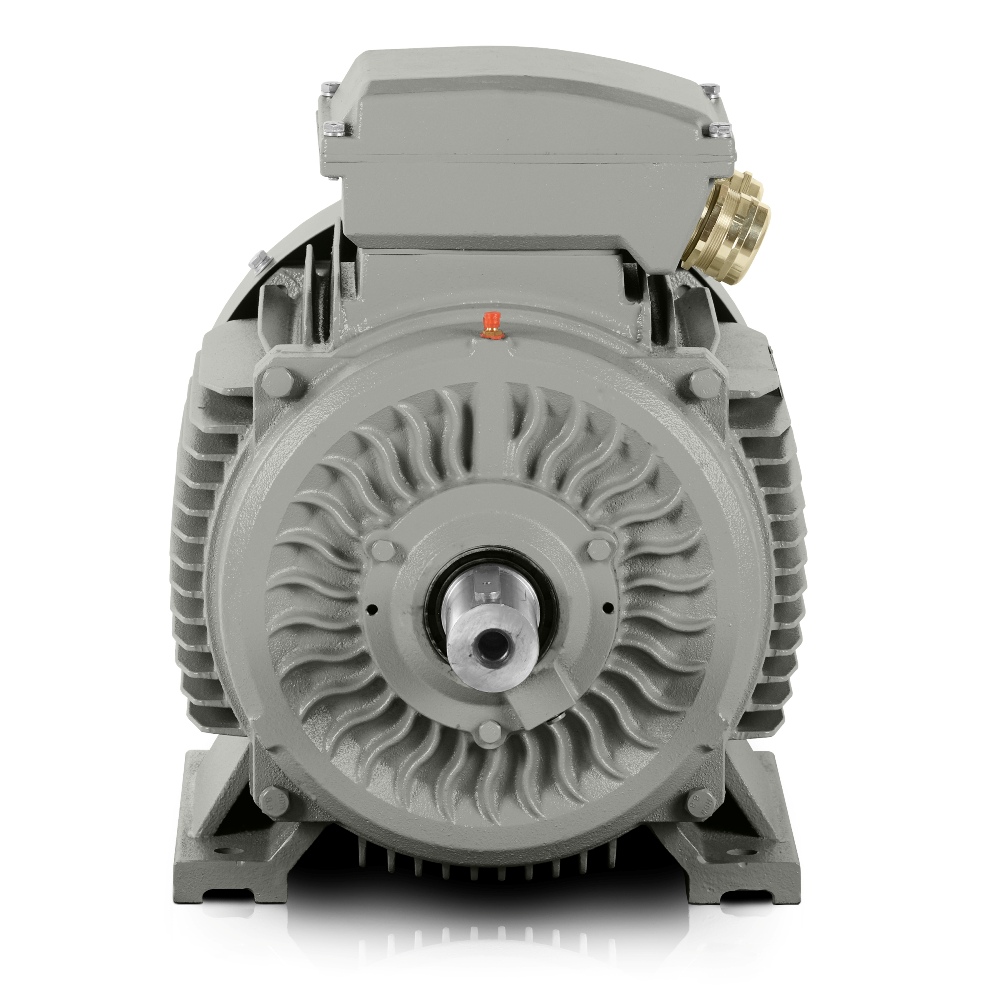

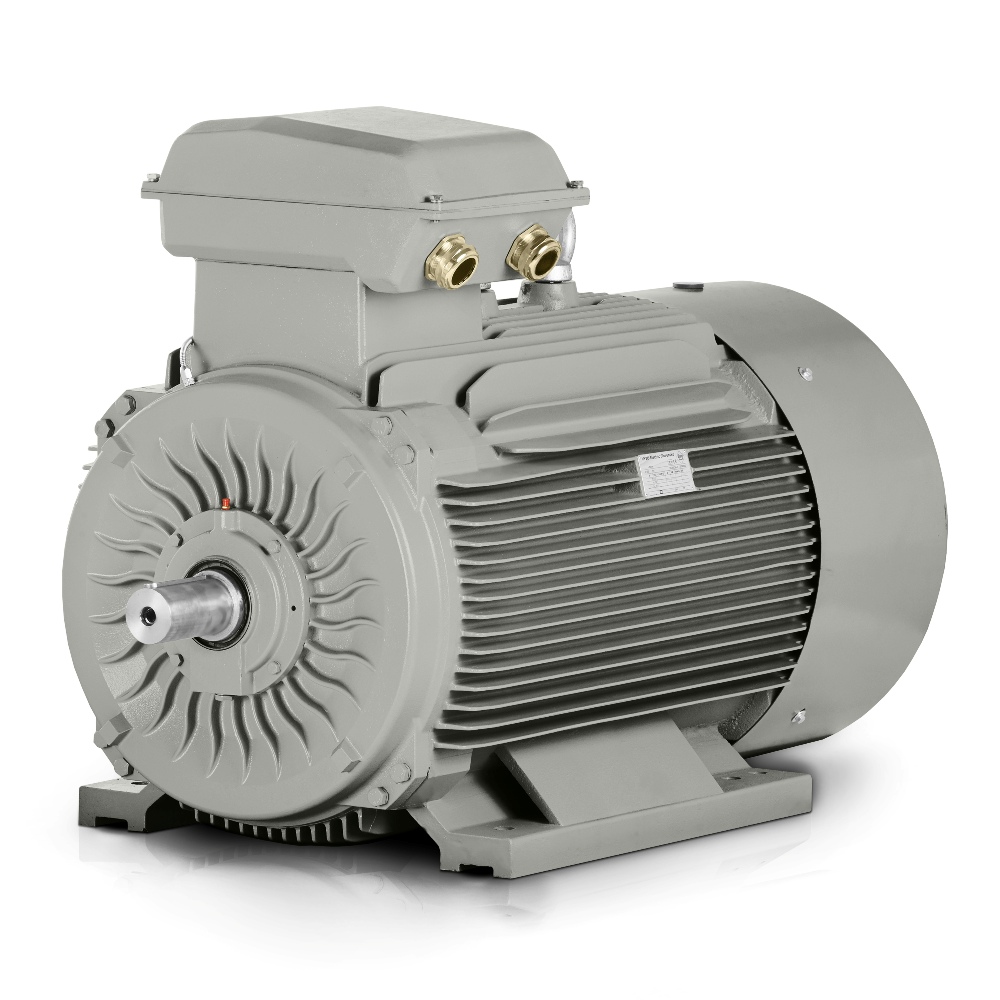

The robust cast-iron frame – reinforced cast-iron bearing shields and reinforced cast-iron feet gives the motor the rigidity appreciated by installers and service technicians in environments with elevated vibration. A packaging weight of 1087 kg and packaging dimensions of 1412×727×1026 mm reflect a robust construction suitable for industrial assemblies where the motor must be supported on a stable foundation. Rotor inertia of 2.654 kg/m² helps stabilise operation in applications with regular starting and load changes. DE bearing 6317-C3 and NDE bearing 6317-C3 support longer service intervals and accurate rotor guidance in demanding operation.
ISO certificates are a practical indication of manufacturing discipline, process control and repeatable supply during purchasing. In technical procurement, this framework matters because it reduces uncertainty when installing the motor in a line or replacing an existing unit. A noise level of 92 dB(A) should be considered when designing the machine room, especially if the motor is integrated into compact spaces with limited acoustic separation.
2-pole electric motor for drives that must not slow production
When designing a drive, this three-phase electric motor is suitable wherever high rotational speed and stable torque transmission to the driven machine are required. Starting torque ratio LRT/RLT 1.8 and breakdown torque ratio BDT/RLT 2.2 help start heavier mechanisms without unnecessary stress on the network. Starting current ratio LRA/RLA 7.2 should be considered when sizing protection and the switchboard, particularly with frequency-converter supply or direct-on-line starting.
In practice, a 400 V electric motor is used in plants where a 400/690 V network forms part of the standard infrastructure. This makes integration into existing technological units easier and simplifies the design of new lines. A three-phase electric motor of this output is suitable for applications requiring long-term operation without parameter fluctuation and without frequent operator intervention.
Specific industrial use in 11 applications
The 3LC PRO 3LC-315L2-2 model is suitable for the following applications where output, service availability and durable mechanics are important:
- Main drive for an axial fan in a production hall.
- Centrifugal process-pump drive in a chemical plant.
- Compressor assembly for compressed air in a toolmaking shop.
- Crusher drive motor in a bulk-material processing line.
- Mixer drive in an industrial-media storage tank.
- Motor for a conveyor belt in a high-cycle packaging line.
- Main drive for a fine-grinding mill.
- Extruder drive in plastic-granule processing.
- Motor for a centrifuge in food production.
- Rotary-drum mixer drive in construction-material processing.
- Motor for a large cooling-circuit pump in the energy sector.
A choice for technicians who calculate operating costs
For engineers and designers, the key advantage is that this 2-pole electric motor allows precise design of gearing, mounting and power supply. When modernising a line or replacing an older unit, it helps shorten installation time and maintain compatibility with industrial requirements. Combined with high efficiency, robust cast-iron construction and a proven manufacturing background, it is a solution that meets the demands of both standard and heavier drive technology.
For a specific application, technical matching and supply for your project, contact us.
