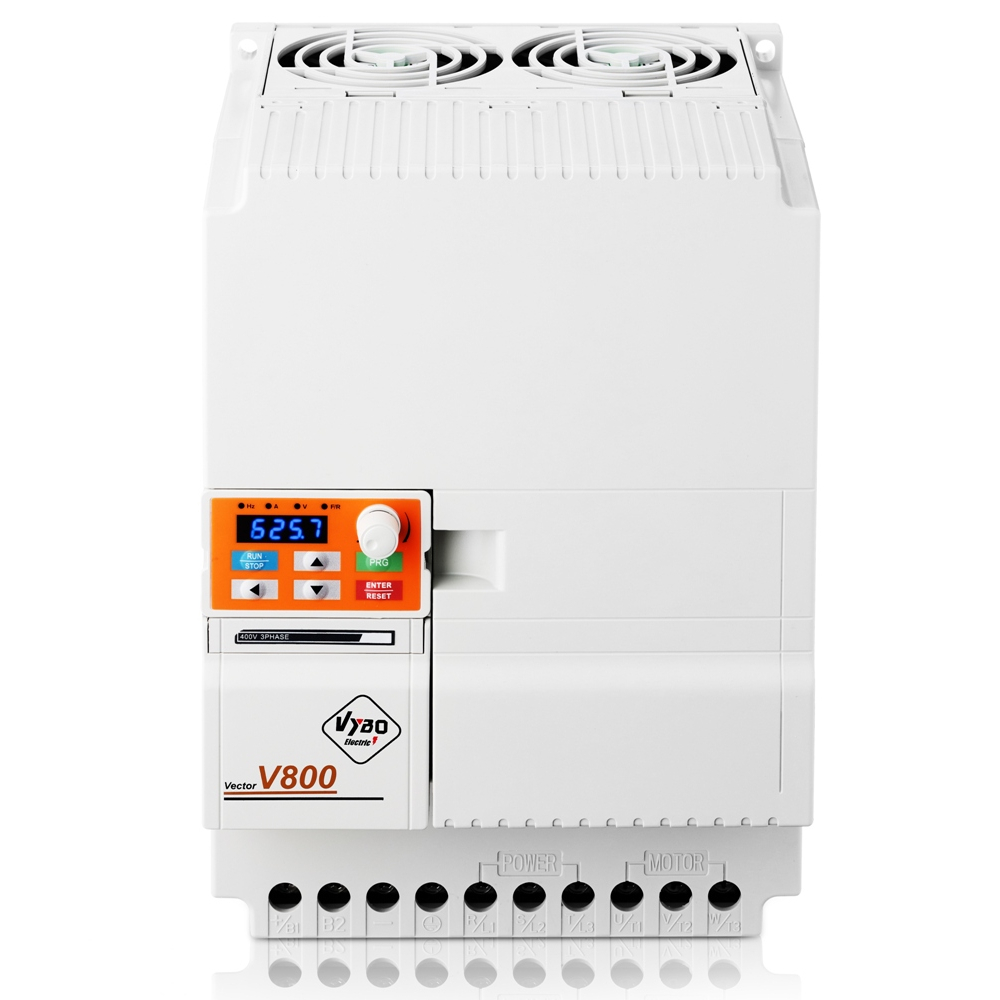

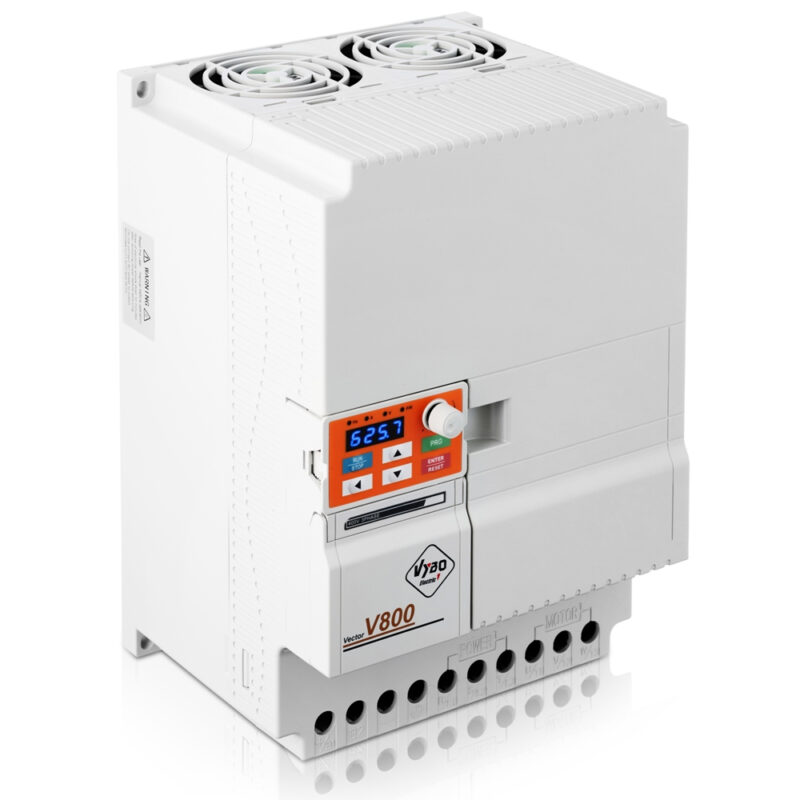

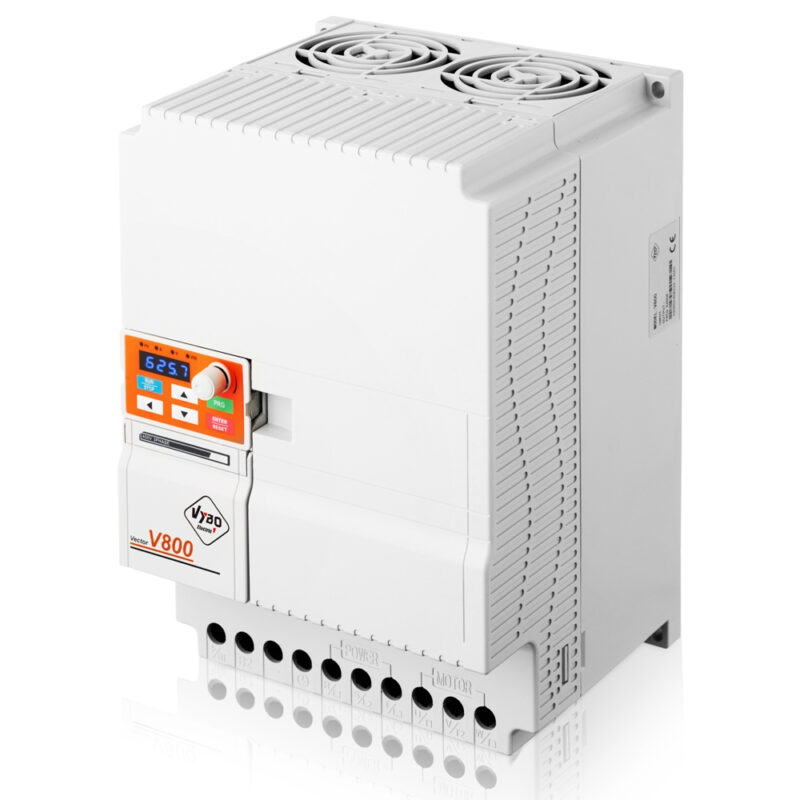

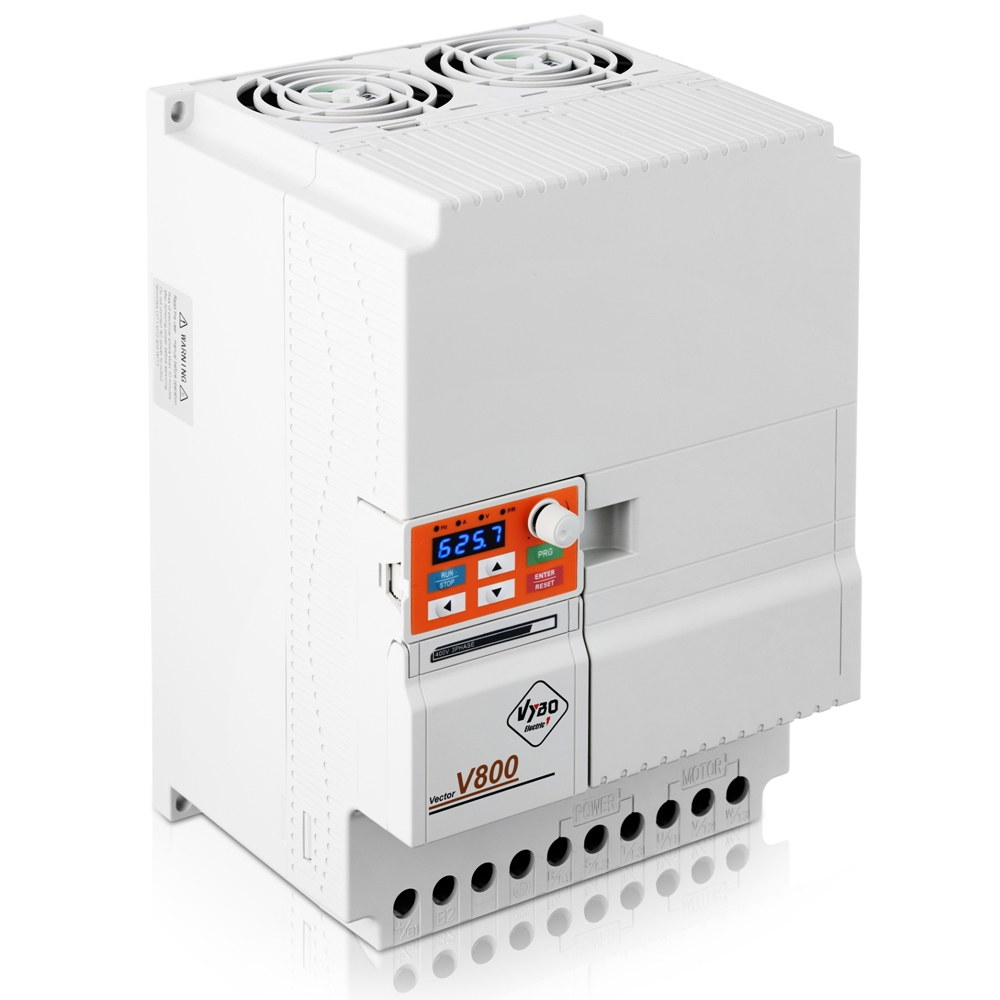

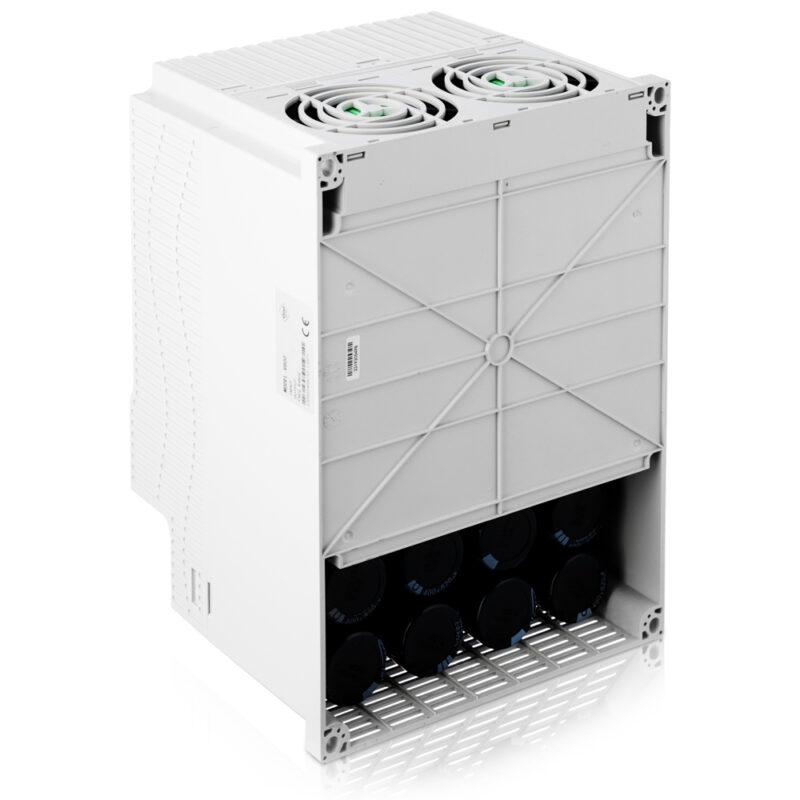

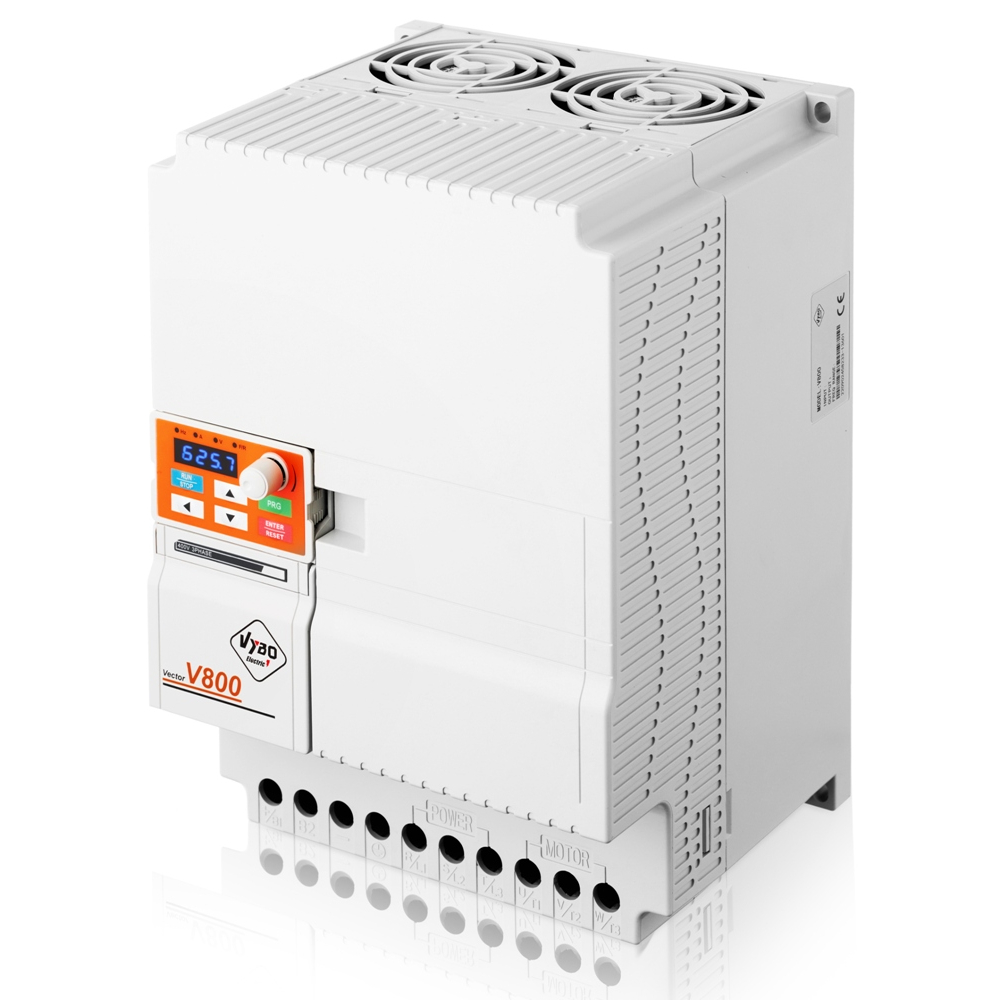

Frequency converter 110kW V800-4T1100 (400V)

Home » Shop » Frequency converters » Frequency converters V800 » Frequency converters V800 (400V) » Frequency converter 110kW V800-4T1100 (400V)
Frequency converter V800-4T1100
Power 110 kW
Nominal output current 210 A
Supply voltage 3 x 400 V
Output voltage 0 – 400 V
Output frequency 0 – 3200 Hz
Brake unit No

Current availability: in stock

Delivery: Free

Guaranteed secure purchase

If you need advice or help with your order, feel free to contact us.

Frequency converter 110kW V800-4T1100 (400V) with fast delivery. We deliver to all cities in United Kingdom. It is a high-quality frequency converter that offers you stability and reliability. It is suitable for many different applications.

Frequency converters 110kW V800 United Kingdom

The 110kW frequency converters manufactured under the V800 series are not only compatible with vector control, but their specialty is also production in the highest possible quality. They include the most sophisticated functions of professional drive management that will satisfy even the most demanding users. This series also includes special software and functions that ensure operation even in the toughest industrial conditions. The 110kW frequency converters V800, like other models, is pre-programmed during production so that it is ready for use immediately – immediately after connection to the power grid. The user can control the inverter via the panel, but also externally via digital or analogue control. It is used not only for simple but also for the most demanding applications, which are often extremely overloaded.

Frequency converters 110kW 400V – Sale

The functions of the 110kW 400V V800 frequency converter are really extensive. Some basic ones are:

  • Frequency converter power supply with three-phase voltage 3 x 400V AC
  • The control mode of the frequency converter is SFVC open loop vector or V/F control
  • Inverter output frequency 0.01 to 3200 Hz
  • V800 operates with a carrier frequency of 1 to 16 kHz
  • V800 has a built-in braking unit, PID and PLC as standard
  • Built-in EMC filter
  • Standard functions of AVR, JOG, timer, protection functions
  • EMS instant stop safety function
  • Connection function of PTC protection or thermal contact of the electric motor
  • Removable panel with the possibility of external installation up to 50 m (cable)
  • V800 has 6 digital inputs including 1 high speed pulse 100kHz; 2 analog inputs 0-10V and 4-20mA.
  • Outputs are 1 digital, 1 analog and 1 relay
  • Physical RS 485 MODBUS interface integrated as standard
  • MODBUS RTU communication interface
  • Standards EN/IEC 61800-3: 2017; C1 suitable for 1st environment; EN/IEC 61800-3: 2017; C2, which is suitable for the 1st environment

110kW V800 frequency converters are widely used in practice

  • Grinders
  • Pumps
  • Mills
  • Air conditioning
  • Cutting machines
  • Food
  • Electric gears
  • Ceramics
  • Textile
  • Submersible machines
  • Centrifugal machines
110kW V800 frequency converters in stock

If you want to get more information about V800 series frequency converters, you can also view the following PDF materials: User Manual and Frequency Converter Catalog or Data Sheet. If you need to add missing data, you can also contact us via our customer hotline or send us a message to our email address. Our sales staff will be happy to answer all your questions. We look forward to hearing from you.

Quality frequency converters immediately

We offer our valued customers 110kW frequency converters from the V800 series with particularly fast delivery. You can order the converter cheaply online in our e-shop, we will pack and ship it to you immediately. Within a few days you can use your new frequency converters for your purposes. VYBO Electric is a guarantee of quality.

Frequency converters 110kW V800 400V Sales United Kingdom

Frequency converters 110kW V800 400V Sales United Kingdom

Frequency converters 110kW V800 400V Sales United Kingdom

Frequency converters 110kW V800 400V Sales United Kingdom

Datasheet

Dimension drawings

Catalogue, Manual

Rated power at normal load (normal operation) 110 kW
Performance under heavy load 90 kW
Nominal output current 210 A
Supply voltage 3 x 400 V
Output voltage 0 – 400 V
Output frequency 0 – 3200 Hz
Overload capacity in ND mode – Normal Duty 120 % / 60s
Overload capacity in HD mode – Heavy Duty 150 % / 60s
Control mode V/F scalar control
SFVC open loop vector control mode
CLVC vector control mode X
Analog inputs 2
Digital inputs 6
Analog outputs 1
Relay outputs 1
Open collector outputs 1
Brake transistor X
EMC filter
+10V output
+24V output X
Input for PTC
Safe Torque Off (STO) X
Emergency Stop (EMS)
Integrated Ethernet X
Integrated MODBUS RTU
PROFIBUS X
PG card for encoder X
PID
Intelligent PLC function
External panel connection (typically up to 30 m)
Protection class IP 20
Protection class IP 65 X
Change direction of rotation via external input
Change direction of rotation in the control panel X
V800 Series Inverter Operating Parameters

1PH / 3PH AC 230V ±15%
Inverter type V800 Power (kW) Maximum input current (A) Rated output current (A) Recommended motor power (kW)
V800-2S0004 0,4 5.4 2.4 0,4
V800-2S0007 0,75 7.2 4.5 0,75
V800-2S0015 1,5 10 7 1,5
V800-2S0022 2,2 16 10 2,2
V800-2S0030 3 23 16 3
3PH / 3PH AC 400 V ±15 %
V800-4T0007 0,75 3.8 2,5 0,75
V800-4T0015 1,5 5 3.7 1,5
V800-4T0022 2,2 5.8 5 2,2
V800-4T0030 3 8 7,5 3
V800-4T0040 4 10 9 4
V800-4T0055 5.5 15 13 5.5
V800-4T0075 7,5 19 17,5 7,5
V800-4T0110 11 26 25 11
V800-4T0150 15 35 32 15
V800-4T0220 22 46 45 22
V800-4T0300 30 62 60 30
V800-4T0370 37 76 75 37
V800-4T0450 45 92 90 45
V800-4T0550 55 112 110 55
V800-4T0750 75 155 150 55
V800-4T0900 90 180 176 90
V800-4T1100 110 215 210 110
V800-4T1320 132 260 253 132
V800-4T1600 160 310 300 160
V800-4T1850 185 350 340 185
V800-4T2000 200 390 380 200
Input voltage (V) 50/60 Hz Motor power (kW) Recommended cable section (mm²) Recommended circuit breaker (A) Recommended input contactor (A)
V800-2S0004 1 phase 1×230 V 0,4 1,5 10 10
V800-2S0007 0,75 1,5 16 16
V800-2S0015 1,5 2,5 25 25
V800-2S0022 2,2 4 32 32
V800-2S0030 3 4 40 40
V800-4T0004 3 phases 3×400 V 0,4 1,5 6 6
V800 -4T0007 0,75 1,5 6 6
V800-4T0015 1,5 1,5 6 6
V800-4T0022 2,2 1,5 10 10
V800-4T0030 3 2,5 16 16
V800-4T0040 4 2,5 16 16
V800-4T0055 5.5 2,5 20 20
V800-4T0075 7,5 4 32 32
V800-4T0110 11 4 32 32
V800-4T0150 15 6 40 40
V800-4T0185 18,5 10 50 50
V800-4T0220 22 10 50 50
V800-4T0300 30 16 63 63
V800-4T0370 37 25 100 100
V800-4T0450 45 25 100 100
V800-4T0550 55 35 125 125
V800-4T0750 75 50 160 160
V800-4T0900 90 70 225 225
V800-4T1100 110 95 250 250
V800-4T1320 132 120 315 315
V800-4T1600 160 120 350 350
V800-4T1850 185 150 400 400
V800-4T2000 200 185 500 500

V800 suitable braking resistors table

Frequency converter type Braking resistor Braking system Recommended motor power (kW)
Resistance power (kW) Resistance value (Ω) (≥)
V800-2S0004 0,08 200 Integrated 0,4
V800-2S0007 0,08 150 Integrated 0,75
V800-2S0015 0,10 100 Integrated 1,5
V800-2S0022 0,10 70 Integrated 2.2
V800-2S0030 0,25 65 Integrated 3
V800-4T0004 0,15 300 Integrated 0,4
V800-4T0007 0,15 300 Integrated 0,75
V800-4T0015 0,15 220 Integrated 1,5
V800-4T0022 0,25 200 Integrated 2.2
V800-4T0030 0,3 130 Integrated 3
V800-4T0040 0,3 130 Integrated 4
V800-4T0055 0,4 90 Integrated 5.5
V800-4T0075 0,5 65 Integrated 7.5
V800-4T0110 0,5 65 Integrated 11
V800-4T0150 0,80 43 Integrated 15
V800-4T0185 1 32 Integrated 18,5
V800-4T0220 1.3 25 Integrated 22
V800-4T0300 1,5 22 Integrated 30
V800-4T0370 2,5 16 Integrated 37
V800-4T0450 3.7 12.6 Integrated 45
V800-4T0550 4.5 9.4 External 55
V800-4T0750 5.5 9.4 External 75
V800-4T0900 7,5 6.3 External 90
V800-4T1100 4,5 x 2 9,4 x 2 External 110
V800-4T1320 5,5 x 2 9,4 x 2 External 132
V800-4T1600 6,5 x 2 6,3 x 2 External 160
V800-4T1850 16 2,5 External 185
V800-4T2000 6,5 x 3 6,3 x 3 External 200
