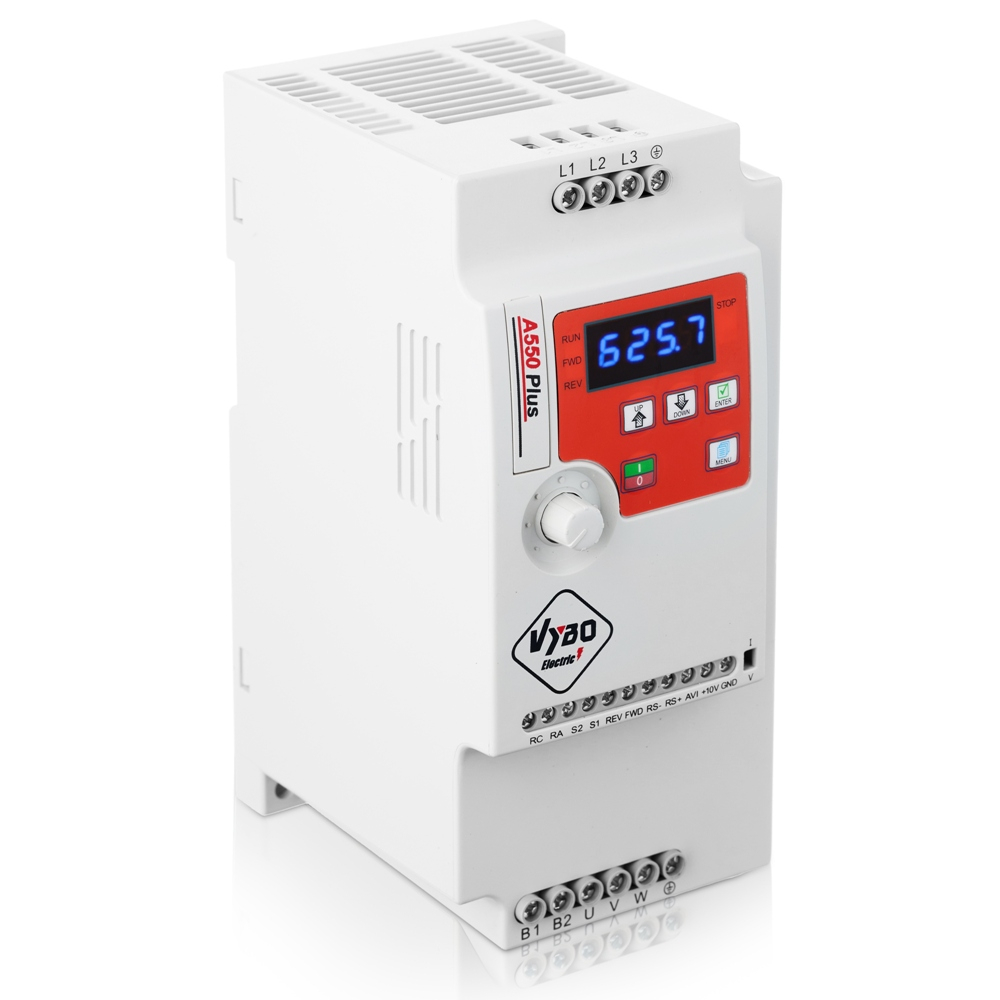

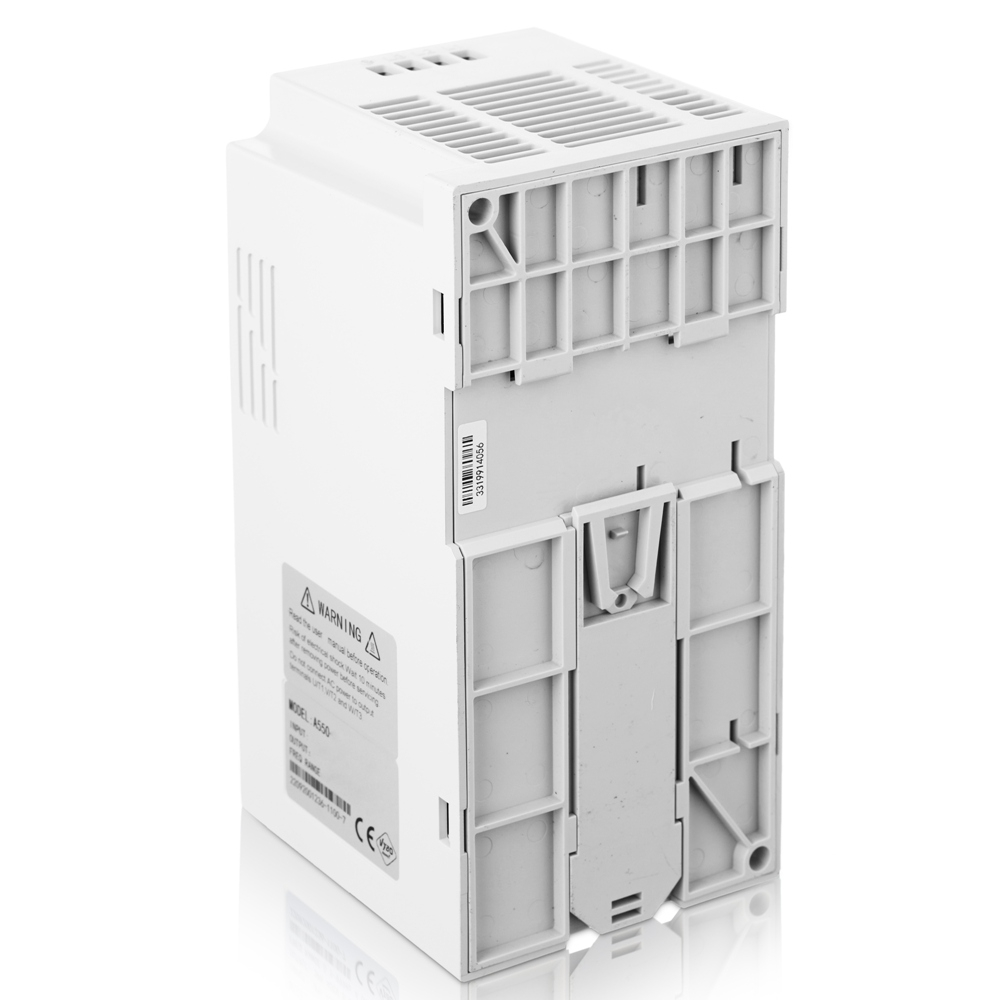

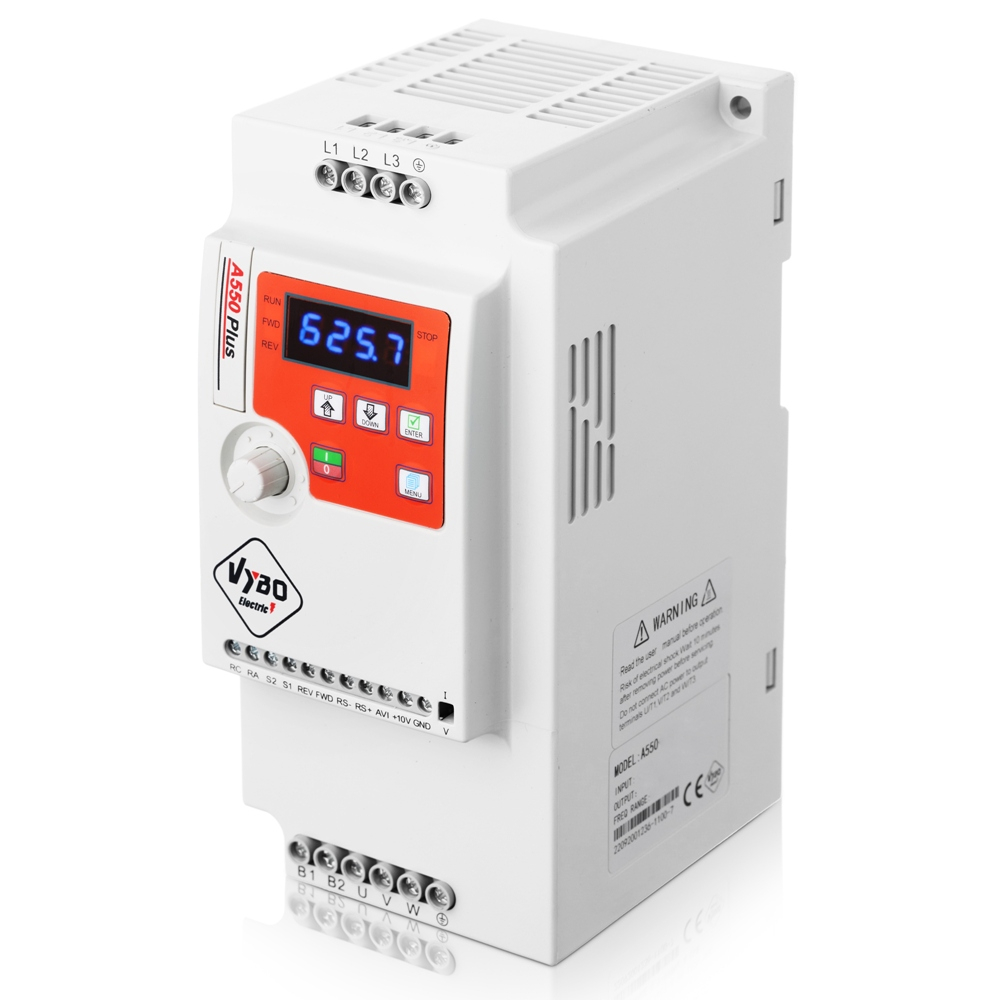

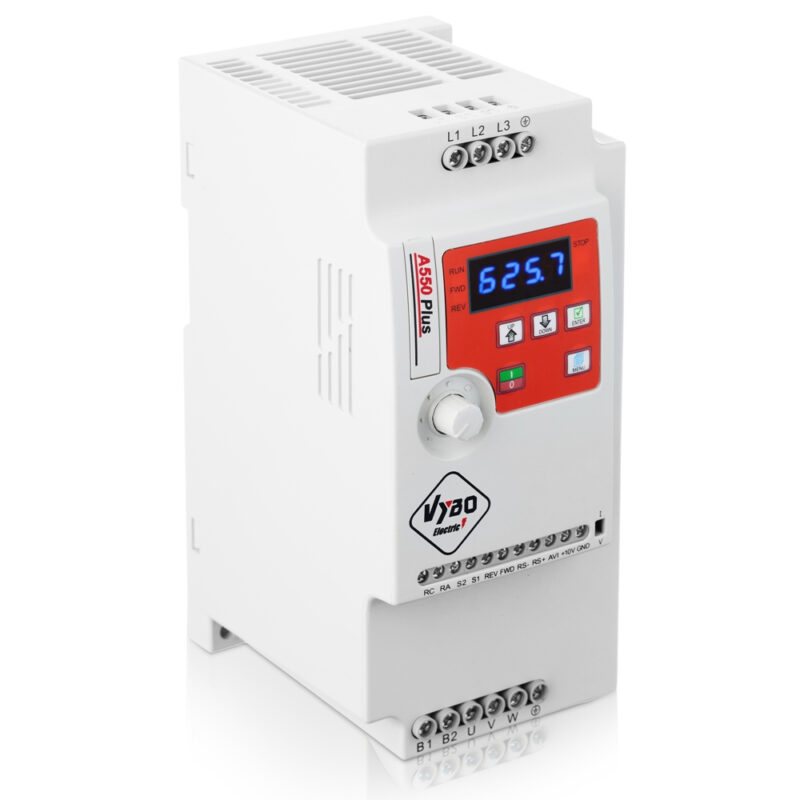

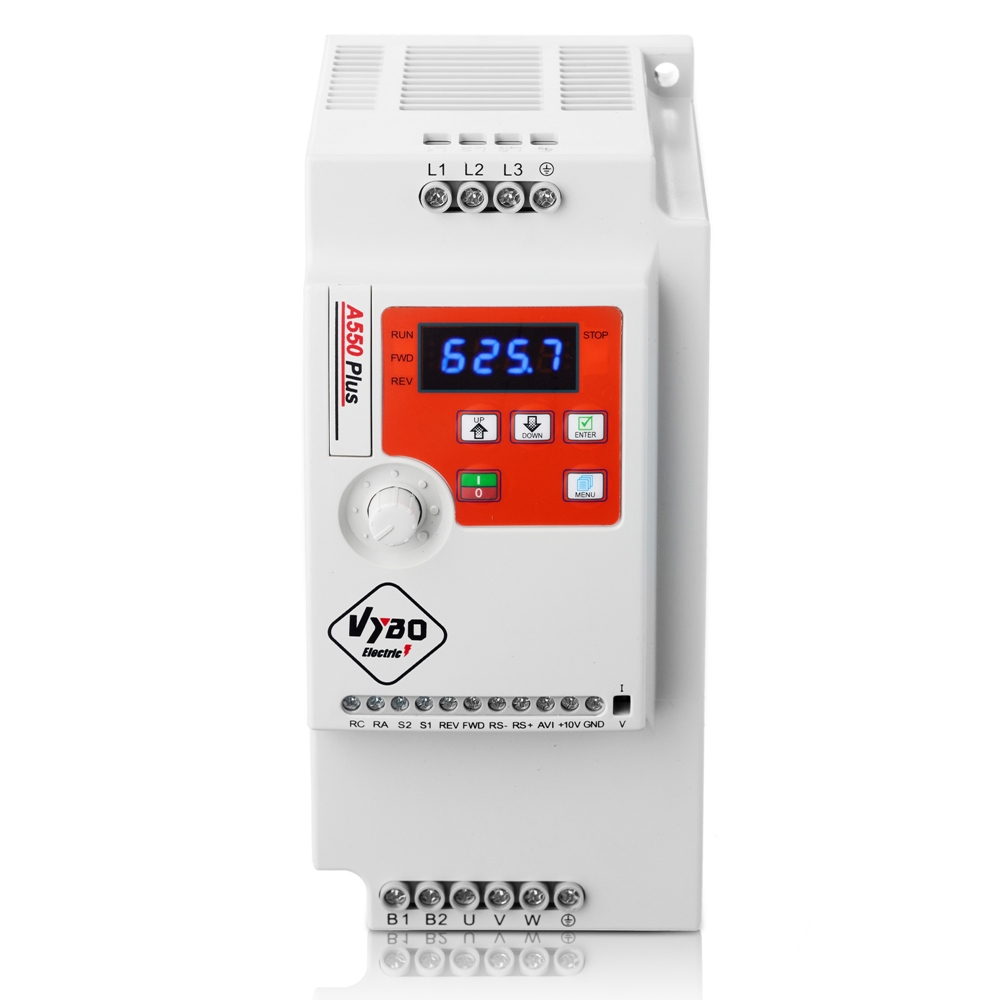

Frequency inverter 7,5kW A550 Plus-4T0075 (400V)

Home » Shop » Frequency converters » Frequency converters A550 » Frequency converters A550 (400V) » Frequency inverter 7,5kW A550 Plus-4T0075 (400V)
Frequency converter A550 Plus-4T0075
Power 7,5 kW
Nominal output current 17,5 A
Supply voltage 3 x 400 V
Output voltage 0 – 400 V
Output frequency 0 – 999 Hz
Brake unit Yes

Current availability: in stock

Delivery: Free

277,00 £

Guaranteed secure purchase

If you need advice or help with your order, feel free to contact us.

Frequency inverter 7,5kW A550 Plus-4T0075 (400V) from stock with fast delivery throughout the United Kingdom at reasonable prices. A high-quality frequency inverter that works reliably and efficiently. Sale in the online e-shop.

Frequency inverters 7,5kW A550 Plus

The Frequency inverter 7,5kW A550 Plus can be called a universal integrated device of the economic class, which is characterized by the simplicity and clarity of its controls. It is designed to fully meet the requirements of customers and is therefore based on many years of experience and comments from users. The 7,5kW A550 Plus model is fully pre-programmed, so it is ready for use immediately after connecting to the power grid. The user can control it not only from the control panel, but also externally. To start the inverter, just press the START button and the rotation around its axis can be easily controlled with the built-in knob. Thanks to the stimulus that the user gives to the inverter, its electric motor accelerates or slows down automatically.

Sale of frequency inverters 7,5kW A550 Plus 400V

We sell A550 Plus 400V frequency inverters online. In the data sheet you will find a comprehensive overview of the data on the 7,5kW frequency inverters of the A550 Plus series. The data sheet contains information on electrical parameters, technical parameters, individual functions of the converters and assembly. If you have not found the data you need, the frequency converter operating manual and the inverter catalog are also available in PDF format. You can also contact us via our contact email address. We will be happy to give you all the information you need to choose a suitable device.

Frequency inverters 7,5kW in stock

We always have 7,5kW A550 400V Frequency inverters in stock. These inverters have many great features:

  • The function of increasing the torque of the electric motor by up to 30%
  • A 550 Plus is suitable for controlling asynchronous and synchronous motors
  • Built-in brake unit for types A550 Plus-4T0030 to A550 Plus-4T0450
  • Physical RS 485 MODBUS interface integrated as standard
  • MODBUS RTU communication interface
  • Safety function EMS instant stop
  • Function for connecting PTC protection or electric motor thermal contact
  • Built-in connector for external placement of the control panel via a cable
  • Built-in PID, PLC, AVR, 2 timers, etc.
  • Integrated are 4 digital inputs, 1 analog input 0-10 V and 4-20 mA, 1 multifunctional relay output, etc.
  • Standards IEC 61800-5-1, IEC 61800-3 (environment 1 and 2, category C2)
Frequency inverters 7,5kW A550 Plus in industry

Frequency inverters 7,5kW A550 Plus 400V are universal devices with a really wide range of applications in industry, from ordinary pump drives to various machines for diving, cutting, etc. In addition, we will introduce you to some of the most common areas of application for A550 Plus frequency inverters by our customers.

  • Pumps
  • Air technology
  • Textiles
  • Food
  • Electric gears
  • Ceramics
  • Mills
  • Centrifugal machines
  • Mills
  • Submersible machines
  • Cutting machines
Sale of frequency inverters at affordable prices throughout the United Kingdom

Thanks to many years of experience in the field of electrical engineering, the products of the VYBO Electric brand have undergone extremely significant development and we can currently consider them to be the best that we can find in the respective category on the market. Given the quality and long service life, the A550 Plus Frequency inverters from VYBO Electric are also really affordable in terms of price. We also offer free advice. If you have any questions, please contact us. We will do our best to assist you with your purchase. We look forward to hearing from you.

Frequency inverter 7,5kW A550 Plus 400V In stock United Kingdom

Frequency inverter 7,5kW A550 Plus 400V In stock United Kingdom

Frequency inverter 7,5kW A550 Plus 400V In stock United Kingdom

Frequency inverter 7,5kW A550 Plus 400V In stock United Kingdom

Datasheet

Dimension drawings

Catalogue, Manual

Rated power at normal load (normal operation) 7,5 kW
Nominal output current 17,5 A
Supply voltage 3 x 400 V
Output voltage 0 – 400 V
Output frequency 0 – 999 Hz
Overload capacity in ND mode – Normal Duty 120 % / 60s
Overload capacity in HD mode – Heavy Duty X
Control mode V/F scalar control
SFVC open loop vector control mode X
CLVC vector control mode X
Analog inputs 1
Digital inputs 4
Analog outputs X
Relay outputs 1
Open collector outputs X
Brake transistor
EMC filter
+10V output
+24V output X
Input for PTC
Safe Torque Off (STO) X
Emergency Stop (EMS)
Integrated Ethernet X
Integrated MODBUS RTU
PROFIBUS X
PG card for encoder X
PID
Intelligent PLC function
External panel connection (typically up to 30 m)
Protection class IP 20
Protection class IP 65 X
Change direction of rotation via external input
Change direction of rotation in the control panel X
A550 Series Inverter Performance Parameters

1PH / 3PH AC 230 V ±15%
Inverter type A550 Power (kW) Maximum input current (A) Rated output current (A) Recommended motor power (kW)
A550 Plus – 2S0004 a S2….S* 0,4 5,4 2,4 0,4
A550 Plus – 2S0007 a S2….S* 0,75 7,2 4,5 0,75
A550 Plus – 2S0015 a S2….S* 1,5 10 7 1,5
A550 Plus – 2S0022 a S2….S* 2,2 16 10 2,2
A550 Plus – 2S0030 a S2….S* 3 23 16 3
3PH / 3PH AC 400 V ±15 %
A550 Plus – 4T0007 0,75 3,8 2,5 0,75
A550 Plus – 4T0015 1,5 5 3,7 1,5
A550 Plus – 4T0022 2,2 5,8 5 2,2
A550 Plus – 4T0030 3 7 6,8 3
A550 Plus – 4T0040 4 10 9 4
A550 Plus – 4T0055 5,5 15 13 5,5
A550 Plus – 4T0075 7,5 19 17,5 7,5
A550 Plus – 4T0110 11 26 25 11
A550 Plus – 4T0150 15 35 32 15
A550 Plus – 4T0220 22 46 45 22
A550 Plus – 4T0300 30 62 60 30
A550 Plus – 4T0370 37 76 75 37
Input voltage (V) 50/60 Hz Motor power (kW) Recommended cable section (mm²) Recommended circuit breaker (A) Recommended input contactor (A)
A550 Plus – 2S0004 a S2….S* 1 phase 1×230 V 0,4 2,5 10 10
A550 Plus – 2S0007 a S2….S* 0,75 2,5 16 10
A550 Plus – 2S0015 a S2….S* 1,5 4 16 16
A550 Plus – 2S0022 a S2….S* 2,2 4 25 25
A550 Plus – 2S0030 a S2….S* 3 6 32 32
A550- 4T0004 3 phases 3×400 V 0,4 2,5 6 6
A550 Plus – 4T0007 0,75 2,5 6 6
A550 Plus – 4T0015 1,5 2,5 10 10
A550 Plus – 4T0022 2,2 2,5 10 10
A550 Plus – 4T0030 3 2,5 16 16
A550 Plus – 4T0040 4 4 16 16
A550 Plus – 4T0055 5,5 4 20 16
A550 Plus – 4T0075 7,5 4 32 25
A550 Plus – 4T0110 11 6 32 25
A550 Plus – 4T0150 15 6 40 32
A550 Plus – 4T0185 18,5 10 50 40
A550 Plus – 4T0220 22 10 63 50
A550 Plus – 4T0300 30 16 100 65
A550 Plus – 4T0370 37 25 100 80
A550 Plus – 4T0450 45 35 125 95
A550 Plus – 4T0550 – 4T1600

Table of suitable A550 braking resistors

Frequency converter type Braking resistor Braking system Recommended motor power (kW)
Resistance power (kW) Resistance value (Ω) (≥)
A550 Plus- 2S0004 0,4
A550 Plus- 2S0007 0,75
A550 Plus- 2S0015 1,5
A550 Plus- 2S0022 2,2
A550 Plus- 2S0030 0,25 65 Integrated 3
A550 Plus- 4T0004 0,4
A550 Plus- 4T0007 0,75
A550 Plus- 4T0015 1,5
A550 Plus- 4T0022 2,2
A550 Plus- 4T0030 0,25 150 Integrated 3
A550 Plus- 4T0040 0,3 130 Integrated 4
A550 Plus- 4T0055 0,4 90 Integrated 5,5
A550 Plus- 4T0075 0,5 65 Integrated 7,5
A550 Plus- 4T0110 0,8 43 Integrated 11
A550 Plus- 4T0150 1 32 Integrated 15
A550 Plus- 4T0185 1,3 25 Integrated 18,5
A550 Plus- 4T0220 1,5 22 Integrated 22
A550 Plus- 4T0300 2,5 16 Integrated 30
A550 Plus- 4T0370 3,7 12,6 Integrated 37
A550 Plus- 4T0450 4,5 9,4 Integrated 45
A550 Plus- 4T0550 55
A550 Plus – 4T0750 75
A550 Plus- 4T0900 90
A550 Plus- 4T1100 110
