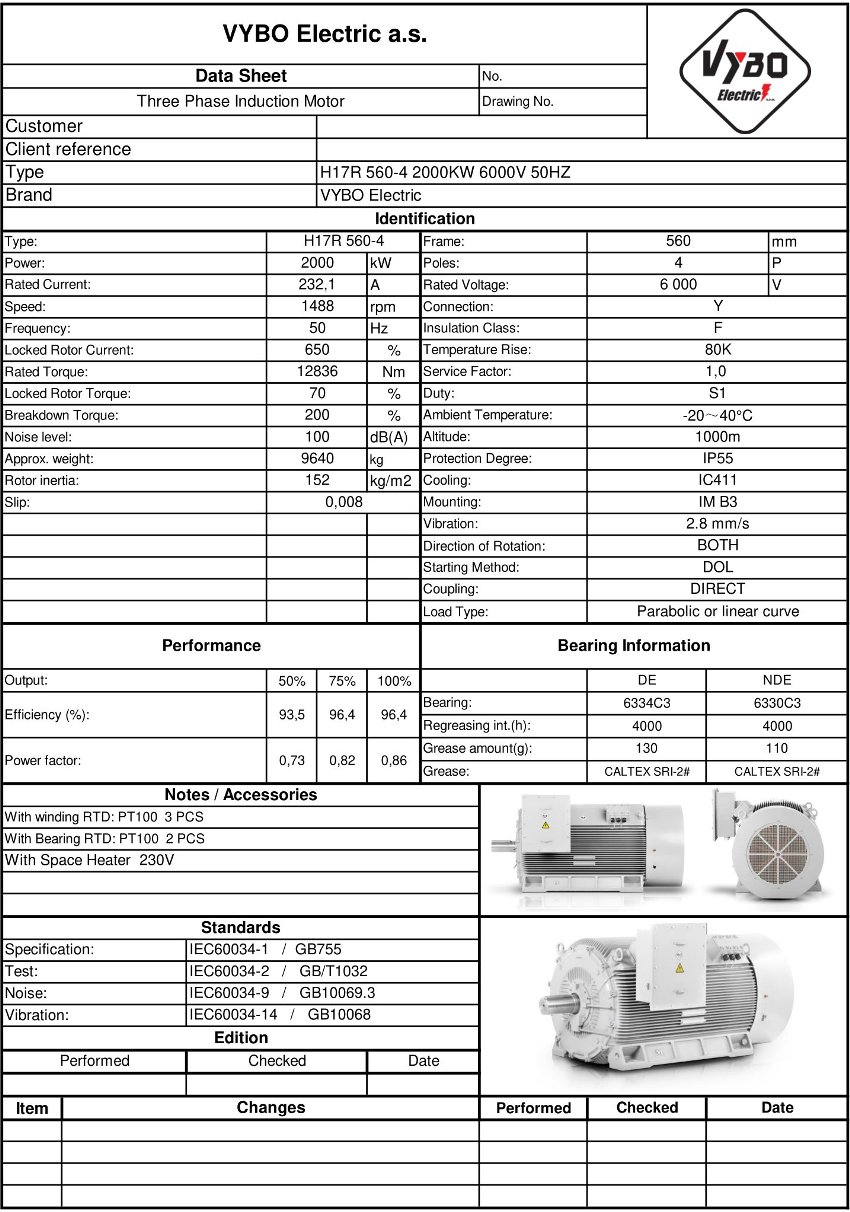

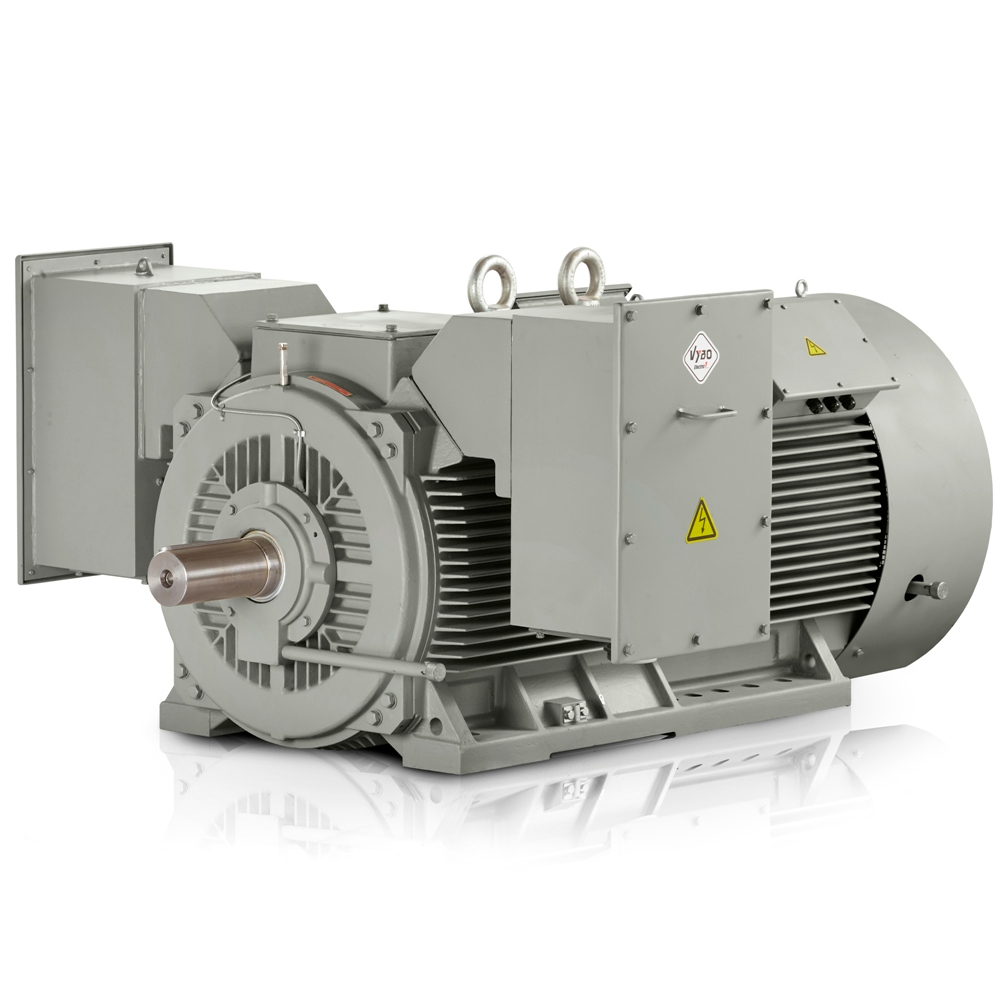

Three-phase electric motor: H17R-560-4 2000KW 6000V 50HZ
| Basic technical data | |
| Motor type | H17R 560-4 |
| Rated power (kW) | 2000 |
| Frame size (mm) | 560 |
| Number of poles | 4 |
| Rated speed (rpm) | 1495 |
| Frequency (Hz) | 50 |
| Electrical parameters | |
| Rated voltage (V) | 6 000 |
| Connection | Y |
| Rated current (A) | 218,7 |
| Efficiency at 100% load (%) | 96,7 |
| Power factor at 100% load | 0,91 |
| Starting and torque characteristics | |
| Rated torque (Nm) | 12776 |
| Locked-rotor torque ratio (LRT/RLT) | 0,64 |
| Breakdown torque ratio (BDT/RLT) | 2,4 |
| Locked-rotor current ratio (LRA/RLA) | 6 |
| Rotor moment of inertia (kg·m²) | 63 |
| Accessories | |
| 6 x PT100 in winding | |
| 1 x PT100 in NDE bearing | |
| 1 x PT100 in DE bearing | |
| Anti-condensation heater 230 V | |
| 3 x PTC thermistor | |
| Applicable standards | |
| Specification | IEC60034-1 |
| Testing | IEC60034-2 |
| Noise | IEC60034-9 |
| Vibration | IEC60034-14 |
| Construction and operating data | |
| Mounting arrangement | IM B3 (other designs on request) |
| Duty type | S1 |
| Load type | Parabolic or linear curve |
| Degree of protection | IP55 |
| Insulation class | F |
| Temperature rise class | B |
| Cooling method | IC411 |
| Starting method | DOL, VFD, Soft-starter |
| Direction of rotation | Both |
| Vibration (mm/s) | 2.8 |
| Rotor cage | copper bar |
| Terminal box type | VYBO CB1-HV |
| Operating conditions | |
| Ambient temperature range (°C) | -20 to +40 (-30, +50, +60 optional) |
| Maximum installation altitude | up to 1000 m |
| Weight and surface finish | |
| Approximate weight | 8170 kg |
| Colour | RAL7030 |
| Paint finish | shiny |
| Bearings and lubrication | |
| DE/NDE bearings | on request/on request |
| Lubricant | on request |
The design of the H17R-560-A-4-6 motor is engineered to deliver higher energy efficiency in operation without unnecessary downtime at a 2000 kW power rating. This 1500 rpm electric motor is suitable for applications where smooth starting, stable torque and reliable operation over long operating cycles are decisive.
IE4 efficiency for demanding industrial drives
IE4 Super Premium efficiency helps reduce energy consumption under loads typical of large process and power drives. As a result, 6 kV industrial drives operate more economically in modes where every kilowatt-hour is reflected in operating costs. In practice, this is a solution for operators who need long-term efficiency without output fluctuations.
Compact 6 kV motor in a 560 mm frame
A 6000 V electric motor in a 560 mm frame size makes it possible to use full output within a space that retains reasonable installation dimensions for technology with limited room. The four-pole electric motor provides a speed range suitable for pumps, compressors and other units where reliable transmission of force is required. The H17R-560-A-4-6 model therefore fits naturally into assemblies where efficiency, service accessibility and mechanical compatibility are monitored.
Special protection for dusty and humid operations
Protection against dust, moisture and demanding operating conditions is important for heavy industry. Available IP56, IP65, IP66 and IP67 protection ratings help adapt the motor to locations where process water, cooling or increased environmental contamination are present. The high-voltage electric motor therefore retains operational reliability even where ordinary solutions reach their limits.
Equipment for temperature monitoring and stable starting
Accessories include 6xPT100 in the winding, 1xPT100 in the NDE bearing, 1xPT100 in the DE bearing, an anti-condensation heater and a 3xPTC thermistor. This equipment supports monitoring of thermal condition and reduces the risk of unwanted downtime during repeated starts or in environments with higher humidity. VYBO Electric draws on years of experience with solutions for large industrial applications, which is noticeable in long-term operation.
Operational reliability for large pumps and compressors
A rated current of 218,7 A, rated torque of 12776 Nm and power factor of 0,91 provide designers with data for precise drive sizing in both starting and steady-state modes. A starting current ratio of 6 % helps plan the power supply and protection without unnecessary reserves that would make the installation more expensive. A weight of 8170 kg together with a rotor moment of inertia of 63,0 kg·m² supports stable operation in technological units such as compressor stations, desulphurization lines or large pumping units.
Solution for responsible use in metallurgy and the energy sector
Typical applications include drives for main flue-gas extraction, mills in cement plants, blast-furnace blowers, large process pumps, compressors for technical gas and agitators in chemical production. Each of these applications places emphasis on reliability, service regime and the ability to operate under load for long periods. If you need a motor for demanding production, order H17R-560-A-4-6 as soon as possible and plan deployment without unnecessary delay.
