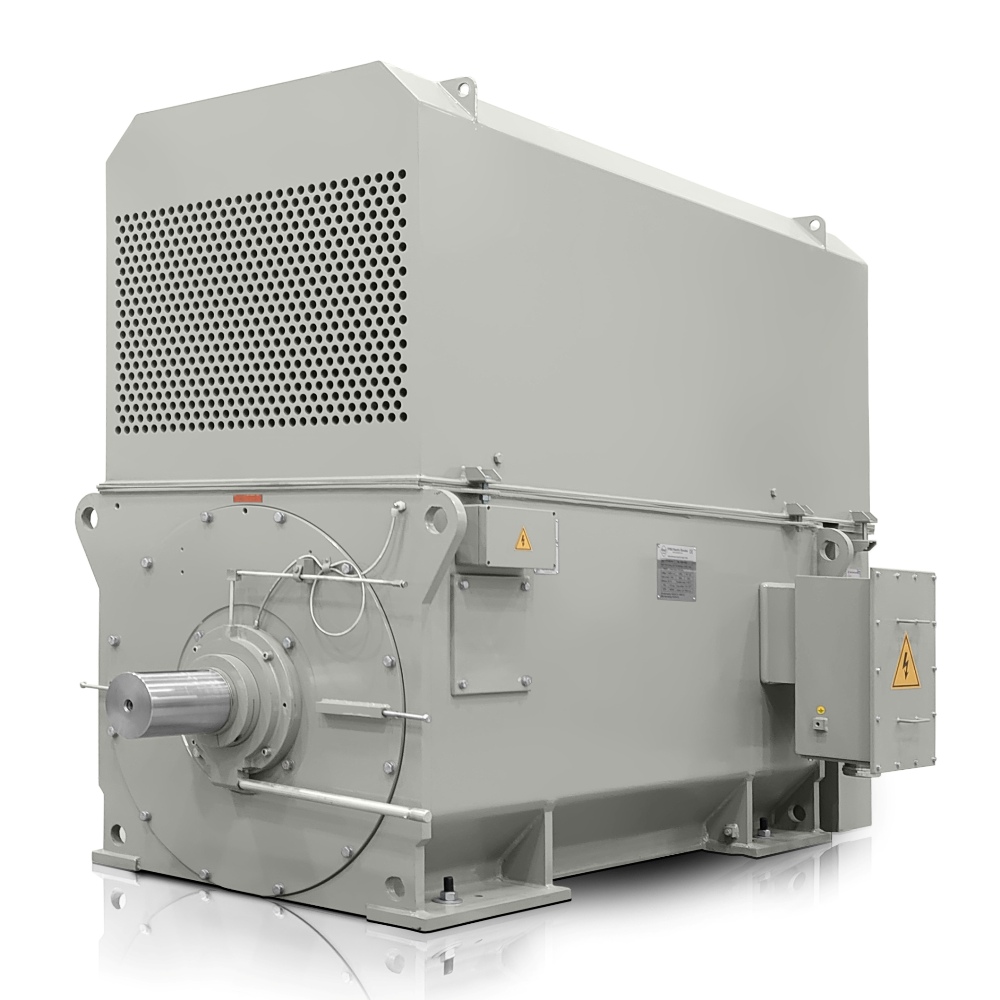

Three-phase electric motor: H27R-4002-2 630KW 6000V 50HZ

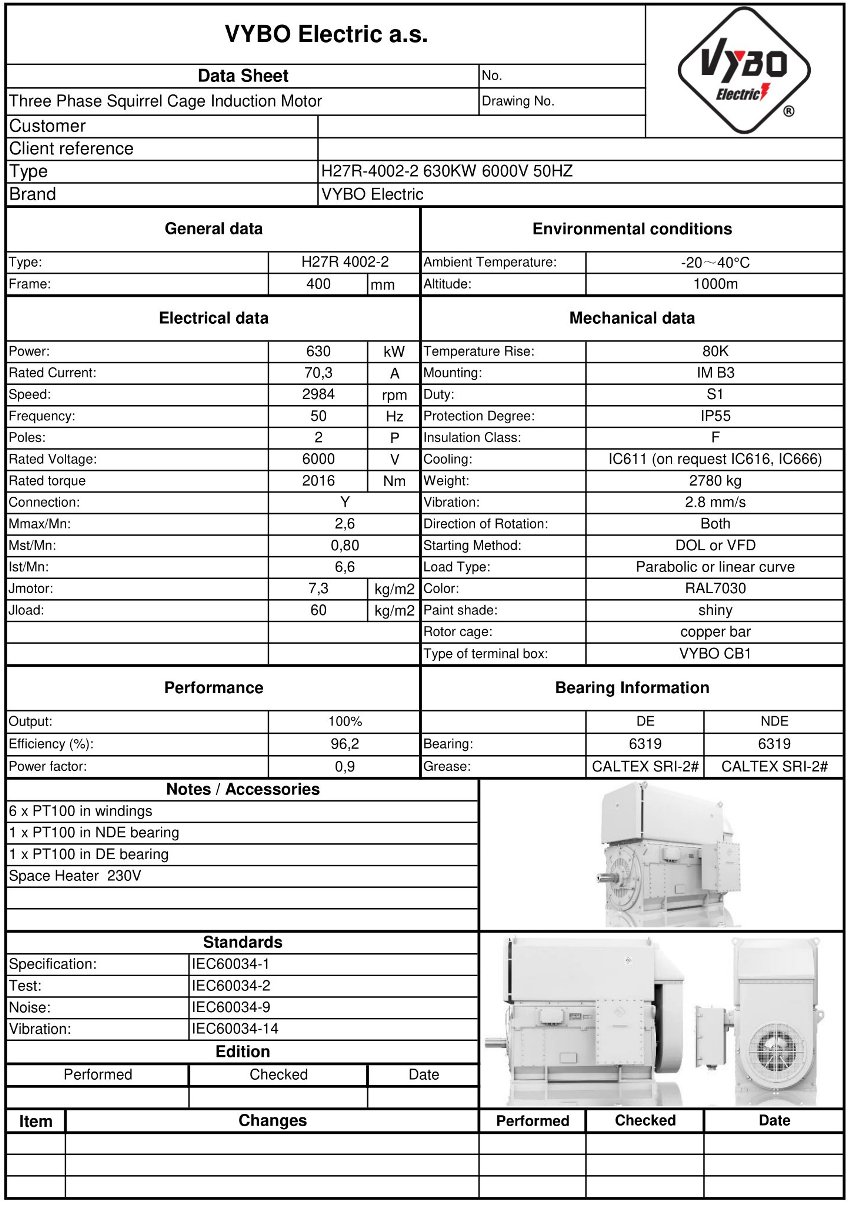

| Basic technical data | |
| Motor type | H27R 4002-2 |
| Rated power (kW) | 630 |
| Frame size (mm) | 400 |
| Number of poles | 2 |
| Rated speed (rpm) | 2984 |
| Frequency (Hz) | 50 |
| Electrical parameters | |
| Rated voltage (V) | 6000 |
| Connection | Y |
| Rated current (A) | 70,3 |
| Efficiency at 100% load (%) | 96,2 |
| Power factor at 100% load | 0,9 |
| Starting and torque characteristics | |
| Rated torque (Nm) | 2016 |
| Locked-rotor torque ratio (LRT/RLT) | 0,80 |
| Breakdown torque ratio (BDT/RLT) | 2,6 |
| Locked-rotor current ratio (LRA/RLA) | 6,6 |
| Rotor moment of inertia (kg·m²) | 7,3 |
| Load moment of inertia (kg·m²) | 60 |
| Accessories | |
| 6 x PT100 in windings | |
| 1 x PT100 in NDE bearing | |
| 1 x PT100 in DE bearing | |
| Anti-condensation heater 230 V | |
| 3 x PTC thermistor | |
| Applicable standards | |
| Specification | IEC60034-1 |
| Testing | IEC60034-2 |
| Noise | IEC60034-9 |
| Vibration | IEC60034-14 |
| Construction and operating data | |
| Mounting arrangement | IM B3 (other designs on request) |
| Duty type | S1 (S2, S3, S4 – S9 optional) |
| Load type | Parabolic or linear curve |
| Degree of protection | IP55 |
| Insulation class | F |
| Temperature rise class | B |
| Cooling method | IC611 (On request IC616, IC666) |
| Starting method | DOL, VFD, Soft-starter |
| Direction of rotation | Both |
| Vibration (mm/s) | 2.8 |
| Rotor cage | copper rotor bars |
| Terminal box type | VYBO CB1-HV |
| Operating conditions | |
| Ambient temperature range (°C) | -20 to +40 (-30, +50, +60 optional) |
| Maximum installation altitude | up to 1000 m |
| Weight and surface finish | |
| Approximate weight | 2780 kg |
| Colour | RAL7030 |
| Paint finish | shiny |
| Bearings and lubrication | |
| DE/NDE bearings | 6319-C3/6319-C3 |
| Lubricant | Lithium-based grease No. 2 (temperature class) |
The H27R 4002-2-6 motor is designed for operations that require high output, long service life and lower operating costs without unnecessary downtime. This 2900 rpm electric motor with an output of 630 kW and a 6000 V power supply is suitable for lines where load stability, efficiency and reliable integration into large technological systems are decisive. Thanks to high efficiency of 96,2 % and a power factor of 0,9, it helps reduce energy losses and supports the energy efficiency of the complete drive.
The substantial welded steel frame provides high rigidity at a favourable structural weight, simplifying transport and installation of large machines. Closed IC611 air-to-air cooling keeps the motor interior cleaner and improves suitability for dusty or corrosive operating environments. Copper rotor bars reduce electrical losses and help maintain thermal resistance under long-term loading. This three-phase electric motor from VYBO Electric is intended for environments where every operating cycle must deliver predictable results.
Power and torque reserve for heavily loaded production lines
Rated torque reaches 2016 Nm, providing sufficient reserve for technological systems with fluctuating resistance and frequent load changes. Start-up data also help when designing the power supply and protection: starting torque reaches 0,8 times the rated torque, breakdown torque 2,6 times the rated torque and starting current 6,6 times the rated current. Rated current of 70,3 A and insulation class F provide a solid basis for long-term operation in high-power industrial assemblies.
Mechanical durability for demanding operating conditions
The design with a 400 mm frame size and package weight of 2780 kg is prepared for robust installation in a machine block where precise positioning and vibration resistance are required. Rotor inertia of 7,3 kg·m² and load inertia of 60,0 kg·m² support the design of couplings, transmissions and starting procedures in applications with higher dynamic loading. 6319-C3 bearings on both the DE and NDE sides are selected for reliable operation in demanding service.
Typical deployment in large operations
- Main drive for rolling lines in metallurgy.
- Compressor systems in large power-generation units.
- Pumps for process and cooling water.
- Fans for boiler rooms and dust-removal systems.
- Crushers in mineral processing.
- Mills in cement and lime production lines.
- Extruders in chemical polymer processing.
- Mixers for high-volume material blending.
- Conveyor-line drives in the mining industry.
- Winding units in cable production.
- Centrifuges in the paper and pulp industry.
- Process agitators in refineries.
- Drying systems with high thermal loading.
- Briquetting presses and pressing technologies.
- Large OEM assemblies for special machines and lines.
If you need a motor for an operation where reliable performance, service availability and lower total operating costs are decisive, take advantage of the H27R 4002-2-6 offer from VYBO Electric and obtain a solution prepared for long-term deployment.
